Product Description

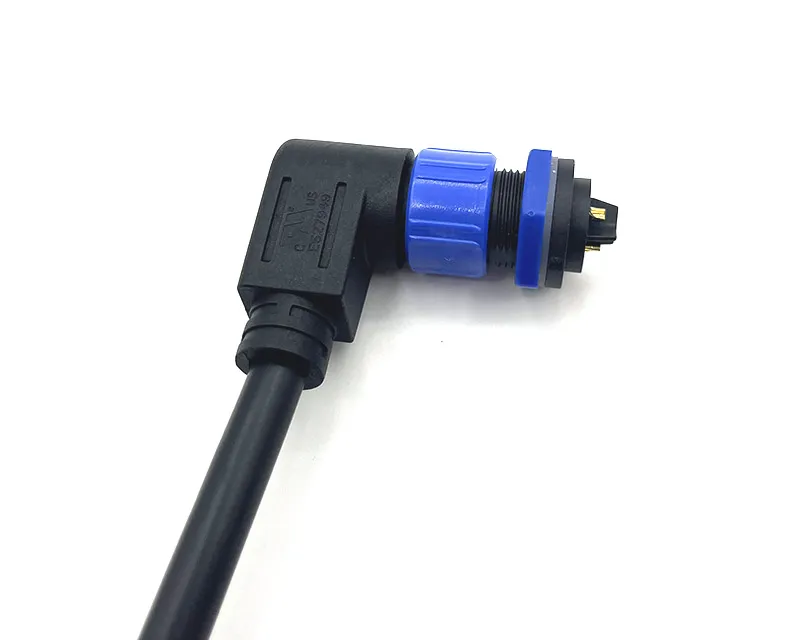

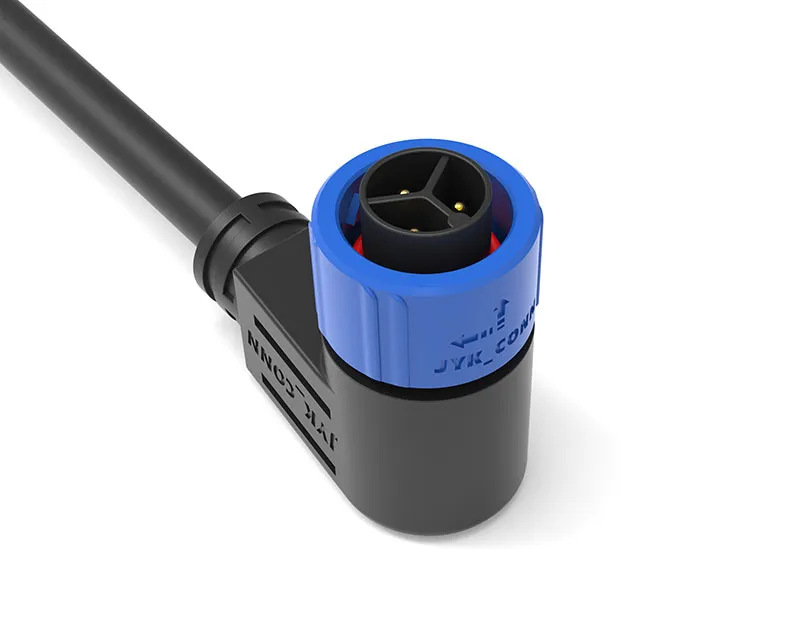

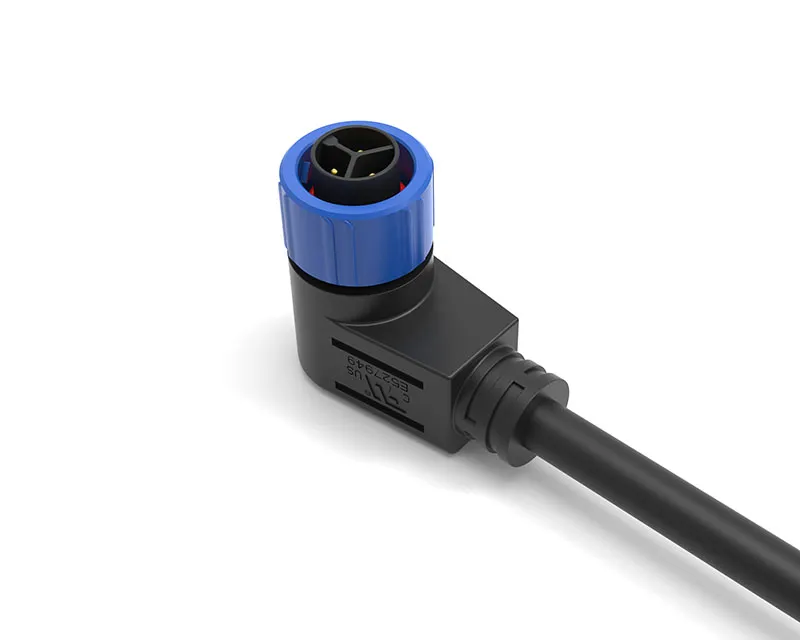

The Right Angle 90° Auto-locking Connector represents a breakthrough in space-optimized connection solutions for modern device applications. Engineered by Shenzhen Jiayunkang Technology, this innovative connector features a precision 90-degree angled design that enables efficient routing in tight spaces where conventional straight connectors cannot fit. The integrated auto-locking mechanism ensures secure mating without requiring additional locking tools or hardware, making it ideal for high-vibration environments. Built to meet IP67 standards, this connector provides reliable waterproof protection while maintaining excellent electrical performance. The gold-plated contacts ensure minimal signal loss and maximum conductivity, making it perfect for both power and data transmission applications in compact device designs.

Application:

It is widely used in LED industry (street lights, display screens, lighting, landscape), communications, automation, new energy, marine electronics, medical equipment, security, positioning systems, automotive circuit systems, etc.

• Medical devices and diagnostic equipment

• Industrial automation and control systems

• Telecommunications infrastructure

• Automotive electronics and vehicle systems

• Consumer electronics and appliances

• Robotics and motion control systems

• Aerospace and aviation electronics

• Military and defense equipment

• Test and measurement instruments

• LED lighting systems and displays

Features:

1. Quick auto-locking connection mode, easy docking, strong foolproof, blind plugging;

2. Multi-core product structure satisfies the diversified industrial requirements;

3. The GND is in contact first, and the live wire & zero wire are in contact later, which is safer and more reliable;

4. Using high-performance thermoplastic material, which has high temperature resistance, UV resistance, fire resistance, flame retardant and oil resistance;

5. Adopt high-performance copper alloyed cores, gold plating, to guarantee electrical performance;

6. Protection level up to IP65/IP67;

7. Mainly used in LED, outdoor illumination, lighting, lamps, stage lighting, medical equipment and other fields.

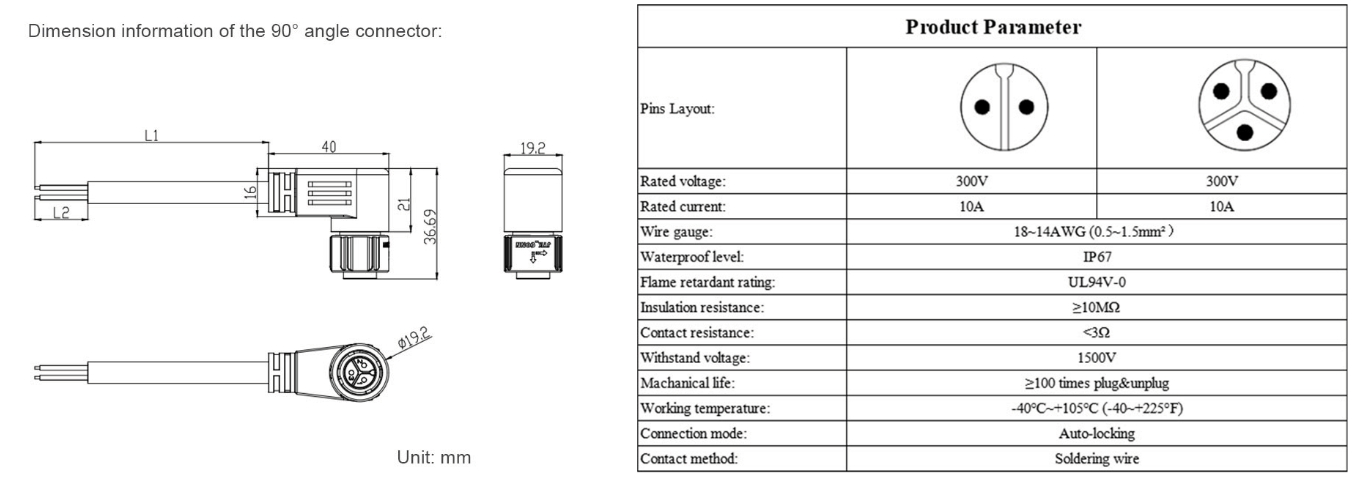

Parameters:

Frequently Asked Questions (FAQ)

Q1: What makes the right-angle design beneficial compared to straight connectors?
A: The 90-degree design allows for better space utilization, reduces cable bending stress, and enables cleaner cable management in tight spaces, making it ideal for compact device designs.

Q2: How does the auto-locking mechanism work?
A: The connector features a precision-engineered locking system that automatically engages with an audible click when properly mated, ensuring secure connection without additional locking tools.

Q3: Can this connector be used in outdoor applications?
A: Yes, with its IP67 rating, the connector is suitable for outdoor use and can withstand temporary immersion in water up to 1 meter deep for 30 minutes.

Q4: What types of signals can this connector transmit?
A: The connector is suitable for both power transmission (up to 5A per contact) and data signals, including high-speed digital signals with proper shielding.

Q5: Is the connector compatible with automated assembly processes?
A: Yes, the design supports pick-and-place automation and can be integrated into automated manufacturing lines.

Q6: What is the expected lifespan of the connector?
A: The connector is rated for more than 5000 mating cycles while maintaining its electrical and mechanical performance characteristics.
