Product Description
The M25 Direct Plug-in Connector represents a breakthrough in industrial connectivity solutions, specifically engineered for device-level applications requiring robust performance and effortless installation. As a premier offering from Shenzhen Jiayunkang Technology, this connector series combines superior engineering with user-centric design to deliver exceptional reliability in demanding industrial environments. Featuring a large 25mm diameter interface and direct plug-in functionality, the M25 connector eliminates complex installation procedures while maintaining IP67-rated waterproof protection. The connector's innovative bayonet locking mechanism ensures secure mating with a simple quarter-turn action, providing audible and tactile confirmation of proper engagement. Engineered with precision-machined contacts and high-grade engineering thermoplastics, the M25 maintains stable electrical performance even in the presence of moisture, vibrations, and temperature fluctuations, making it an ideal solution for industrial automation, machinery, and outdoor equipment applications.

Applications:

It's widely used in outdoor LED industry(street lights, display screen, lighting, landscape), underwater cable and underground water cable.

• Industrial automation control systems

• Robotics and robotic peripheral devices

• Motor and drive connection systems

• Sensor and actuator networks

• Factory machinery and equipment interconnects

• Material handling and packaging systems

• Outdoor industrial equipment

• Food and beverage processing machinery

• Automotive manufacturing equipment

• Water treatment and processing systems

• Renewable energy systems

• Transportation and logistics equipment

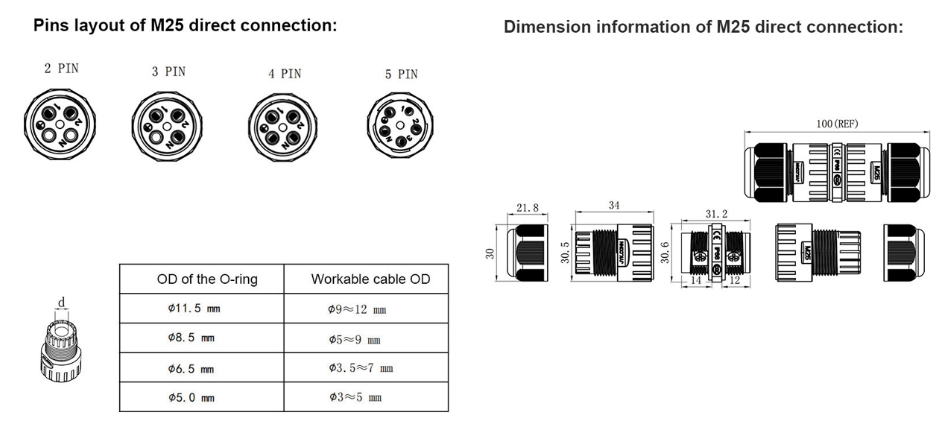

Parameters:

Frequently Asked Questions (FAQ)

Q1: What is the maximum current rating for the M25 connector?
A: The M25 connector supports current ratings up to 16A per contact, making it suitable for power and signal applications in industrial devices.

Q2: How does the bayonet locking mechanism work?
A: The bayonet system requires a simple quarter-turn rotation to securely lock the connector, providing both audible and tactile confirmation of proper engagement.

Q3: Can the M25 connector withstand industrial washdown procedures?
A: Yes, with its IP67 rating and corrosion-resistant materials, the M25 is designed to withstand high-pressure washdowns and exposure to cleaning chemicals.

Q4: What cable types are compatible with this connector?
A: The M25 accommodates various industrial cable types including PUR, PVC, and rubber cables with diameters from 6mm to 12mm.

Q5: Is the connector shielded against electromagnetic interference?
A: Yes, it features complete 360° shielding protection against EMI/RFI interference, ensuring signal integrity in electrically noisy environments.

Q6: What is the expected mating cycle life?
A: The M25 connector is rated for a minimum of 500 mating cycles while maintaining its waterproof and electrical characteristics.

Q7: Does the connector require special tools for installation?
A: No, the direct plug-in design and bayonet locking mechanism require no special tools for installation or maintenance.

Q8: Are custom pin configurations available?
A: Yes, we offer custom pin configurations and contact arrangements to meet specific application requirements.

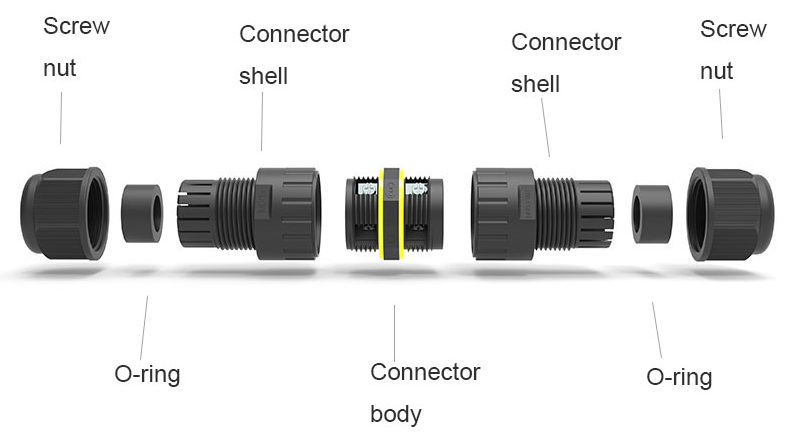

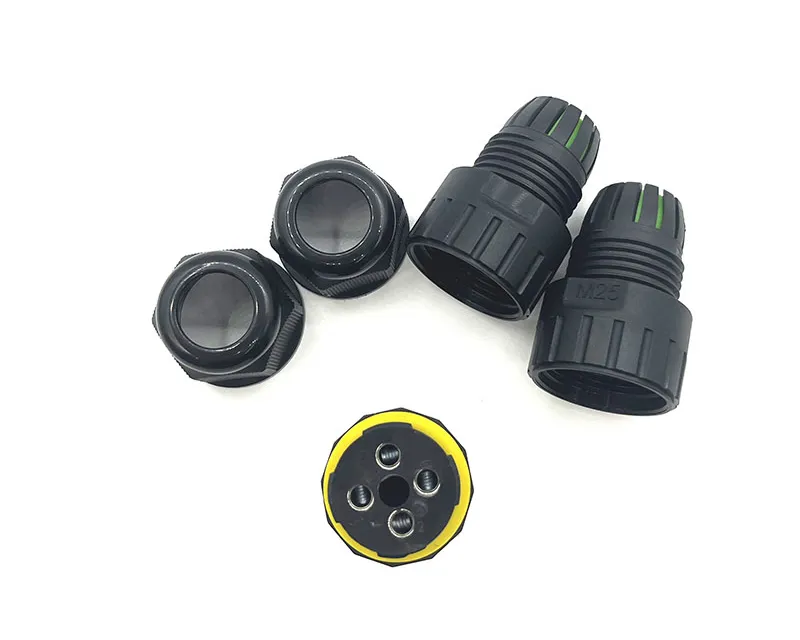

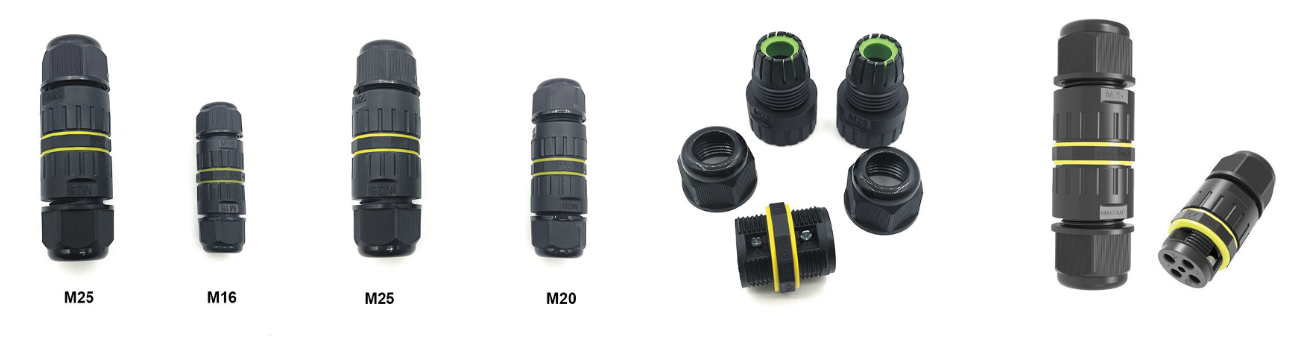

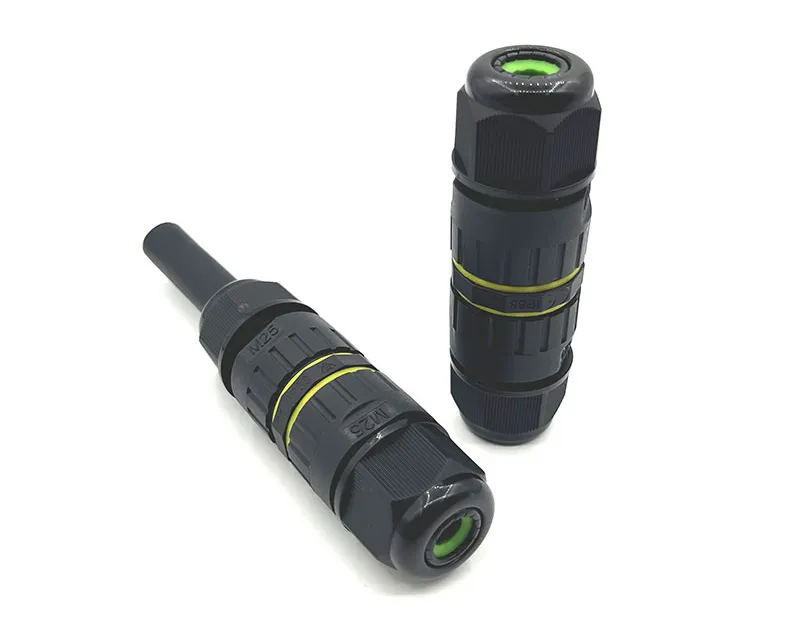

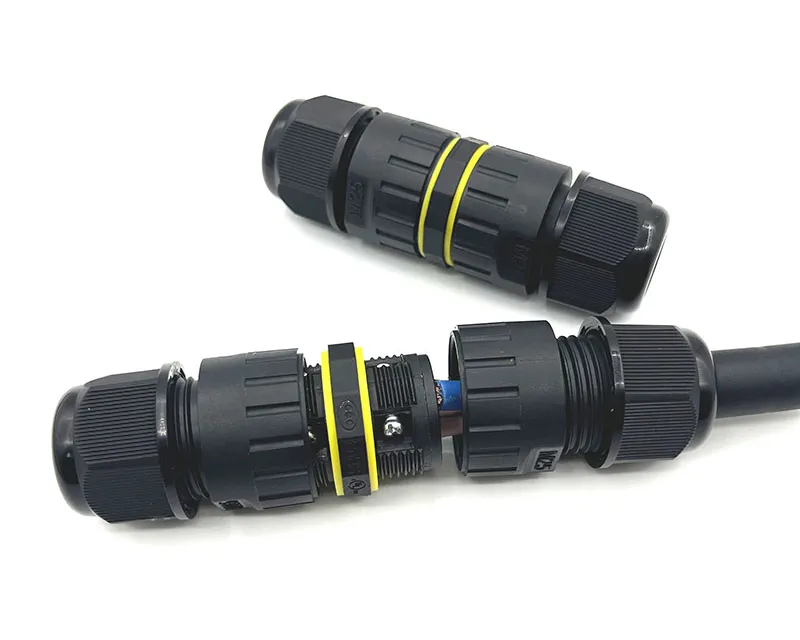

Details:
