Product Description
The M19 Assembly Wireless Connector represents a breakthrough in industrial connectivity solutions, combining the robustness of traditional M-series connectors with cutting-edge wireless technology. Designed specifically for Industry 4.0 applications, this innovative connector eliminates the need for physical cable connections while maintaining the durability and reliability expected from industrial-grade components. Featuring IP68 protection against dust and water ingress, the M19 Wireless Connector enables seamless data transmission in environments where wired connections are impractical or impossible. With support for multiple industrial wireless protocols including WiFi 6, Bluetooth 5.2, and proprietary mesh networks, this connector provides flexible connectivity options for smart factories, automated systems, and IoT deployments. The integrated power management system ensures continuous operation, while the military-grade construction guarantees performance in the most demanding industrial settings.

Applications:

It is mainly used in LED display, automation equipment, stage lighting, outdoor lighting, landscape lighting and other industries.

• Industrial Robotics: Enables wireless communication between robotic arms and control systems

• Automated Guided Vehicles: Provides reliable connectivity for mobile factory equipment

• Remote Monitoring Systems: Ideal for environmental sensors in hazardous or hard-to-reach locations

• Rotating Machinery: Perfect for applications where cable twisting would be problematic

• Smart Manufacturing: Supports IIoT deployments and real-time equipment monitoring

• Outdoor Industrial Equipment: Weather-resistant connectivity for agricultural and construction machinery

• Temporary Installations: Rapid deployment for temporary production lines or event equipment

• Explosive Environments: Safe operation in ATEX-certified areas where spark prevention is critical

Advanced Technical Features

• Wireless Connectivity: Dual-band WiFi 6 (802.11ax) and Bluetooth 5.2 with mesh networking capability

• Environmental Protection: IP68 rating against dust and water immersion, plus corrosion-resistant 316 stainless steel housing

• Power Management: Integrated lithium battery with smart charging via induction or solar options

• Data Security: AES-256 encryption and secure boot functionality for industrial cybersecurity

• Operating Range: Up to 200 meters line-of-sight with optional range extenders available

• Temperature Tolerance: -40°C to +105°C operational range with humidity resistance

• Data Rate Support: Up to 1.2 Gbps throughput with low latency for real-time applications

• Mounting Options: Multiple configurations including panel mount, flange mount, and magnetic base

Features:

1. The most reliable and stable threaded connection mode, easy operating, strong foolproof, blind plugging;

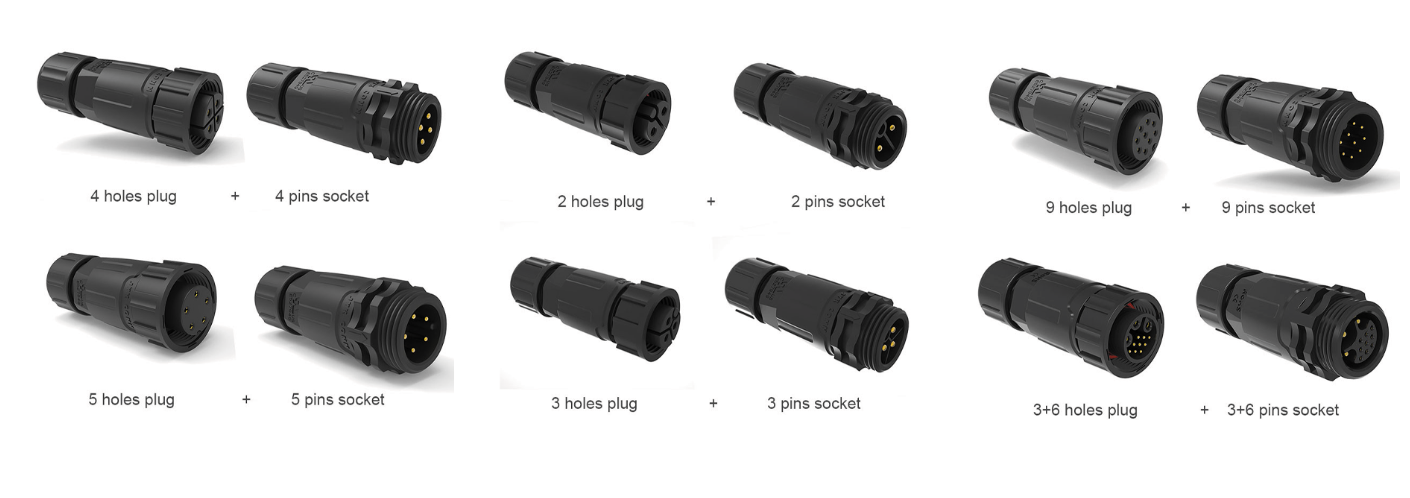

2. Multi-core product structure satisfies the diversified industrial requirements;

3. The GND is in contact first, and the live wire & zero wire are in contact later, which is safer and more reliable;

4. Adopt high-performance copper alloyed cores, gold plating, to guarantee electrical performance;

5. Using high-performance thermoplastic material, which has high temperature resistance, UV resistance, fire resistance, flame retardant, explosion-proof and oil resistance;

6. Protection level up to IP67/IP68;

Parameters:

Frequently Asked Questions (FAQ)

Q1: How does the wireless performance compare to wired M19 connectors?
A: The wireless version provides comparable data rates with added flexibility. While wired connections offer theoretically unlimited bandwidth, our wireless solution provides up to 1.2 Gbps throughput with latency under 5ms, sufficient for most industrial applications.

Q2: What cybersecurity measures are implemented?
A: We employ multiple security layers including AES-256 encryption, secure boot, certificate-based authentication, and regular security updates. The system is designed to meet IEC 62443 standards for industrial network security.

Q3: How long does the battery last, and how is it recharged?
A: The integrated battery provides 72 hours of continuous operation. Recharging options include induction charging, solar power, or quick-disconnect for wired charging. The battery lifespan is 5 years or 2000 charge cycles.

Q4: Can it interface with existing wired M19 systems?
A: Yes, we provide adapters that allow seamless integration with traditional M19 wired systems, enabling hybrid networks during technology transition periods.

Q5: What is the maximum number of devices in a mesh network?
A: The system supports up to 250 devices in a single mesh network, with hop-to-hop latency under 10ms even at maximum network size.

Q6: How does it perform in electrically noisy environments?
A: The connector features advanced noise cancellation algorithms and frequency hopping techniques to maintain reliable communication even in high-interference environments typical of industrial settings.

Q7: What maintenance is required?
A: Maintenance is minimal. Regular firmware updates are performed wirelessly. The housing is designed for easy battery replacement after 5 years of service.

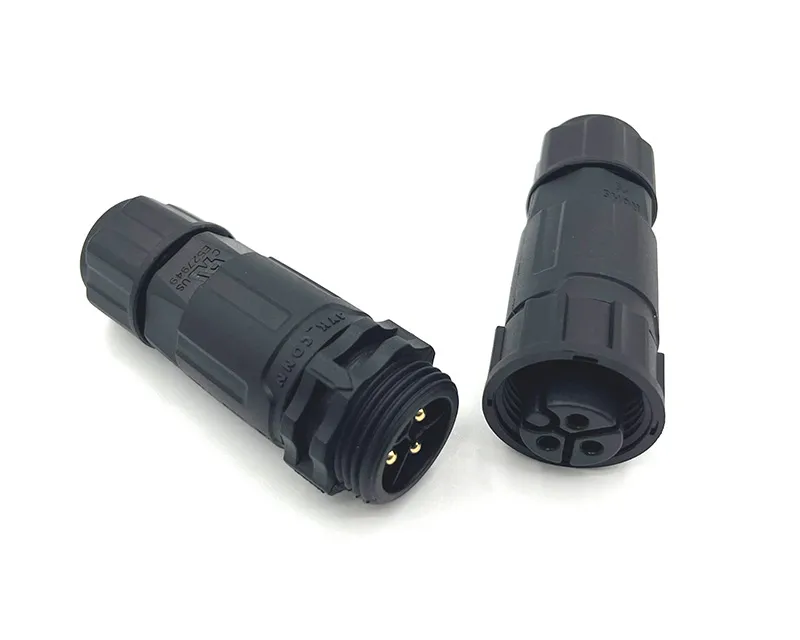

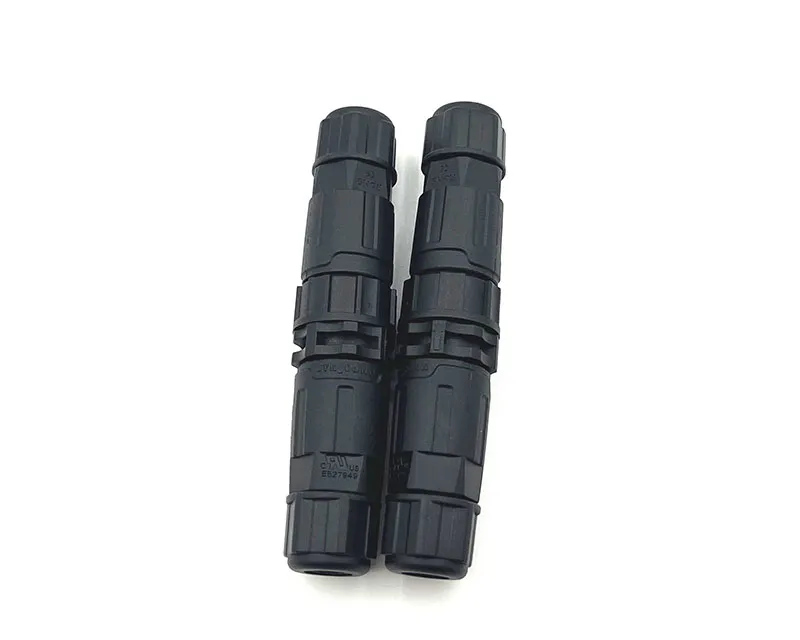

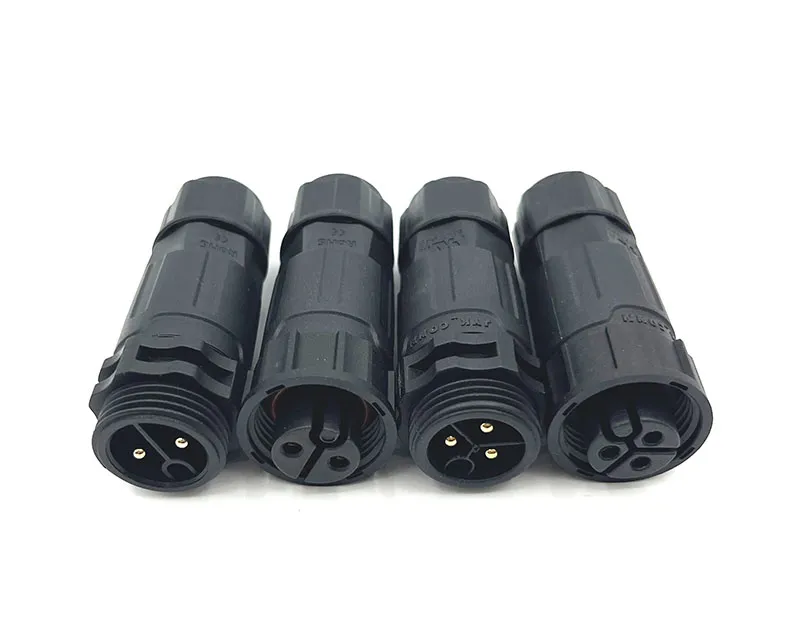

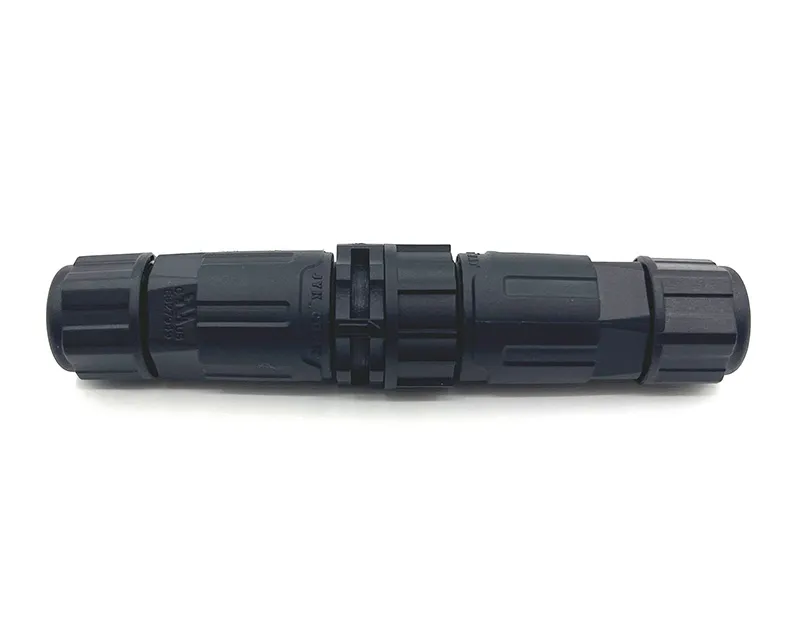

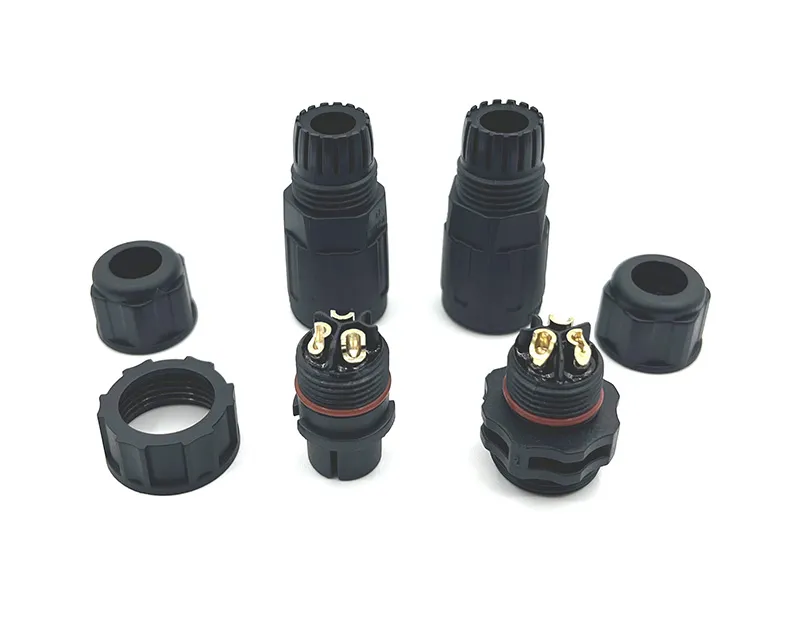

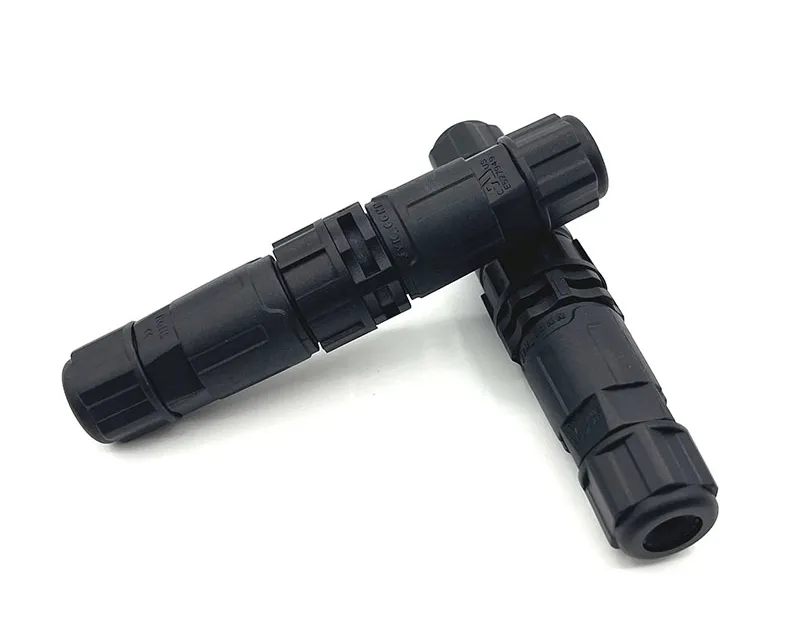

Details:
