Product Description

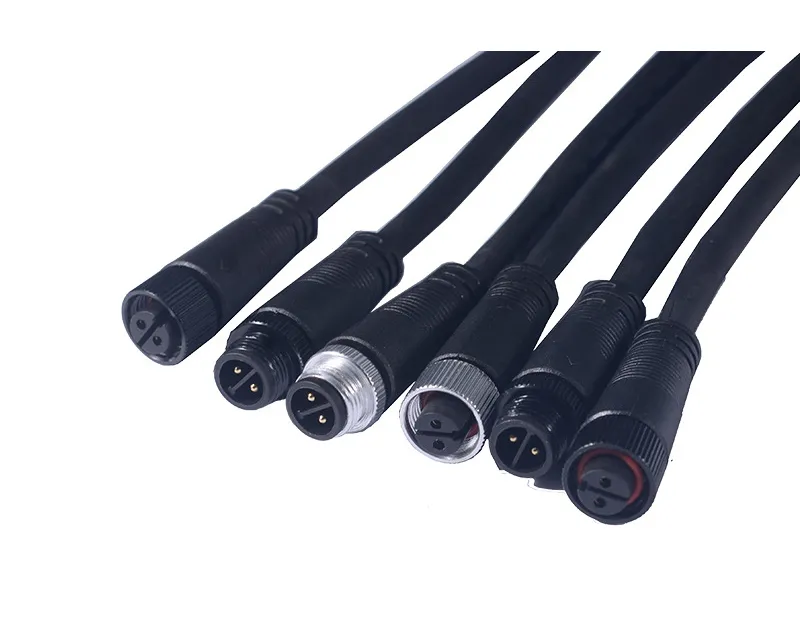

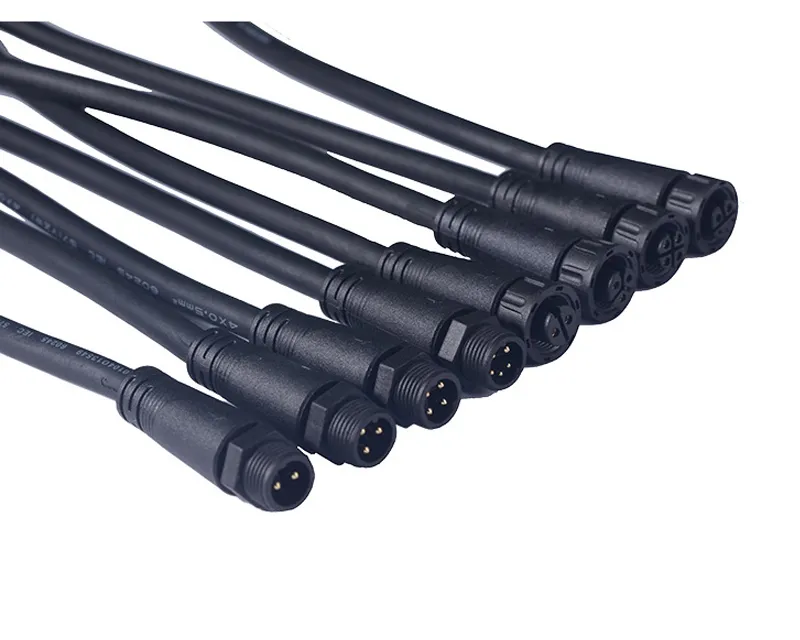

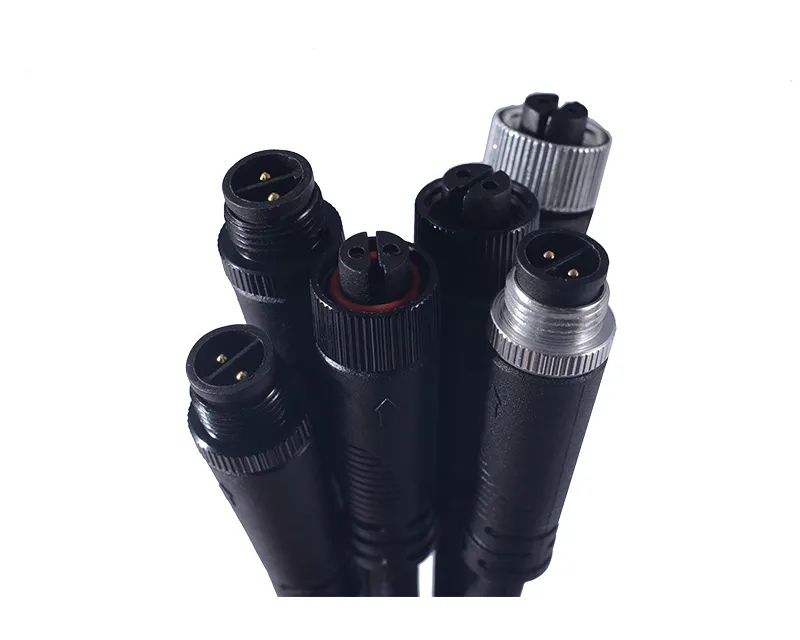

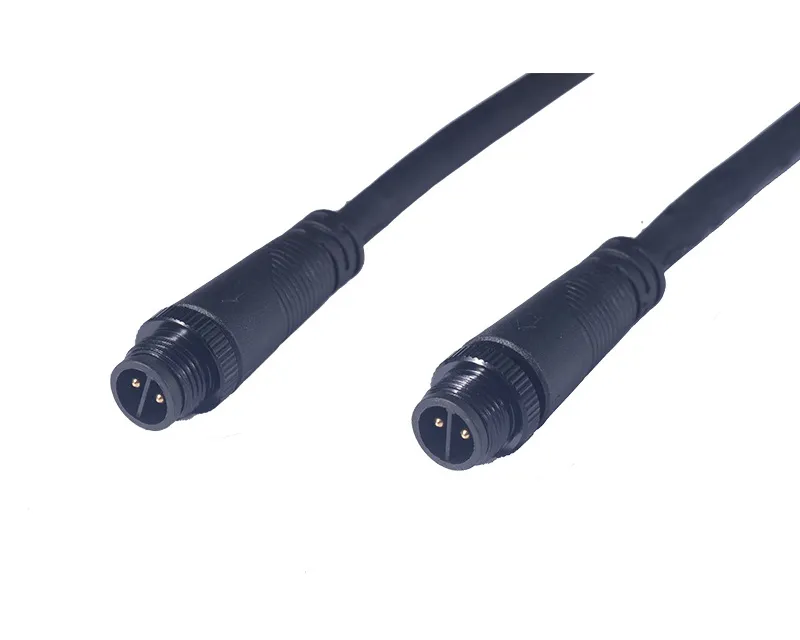

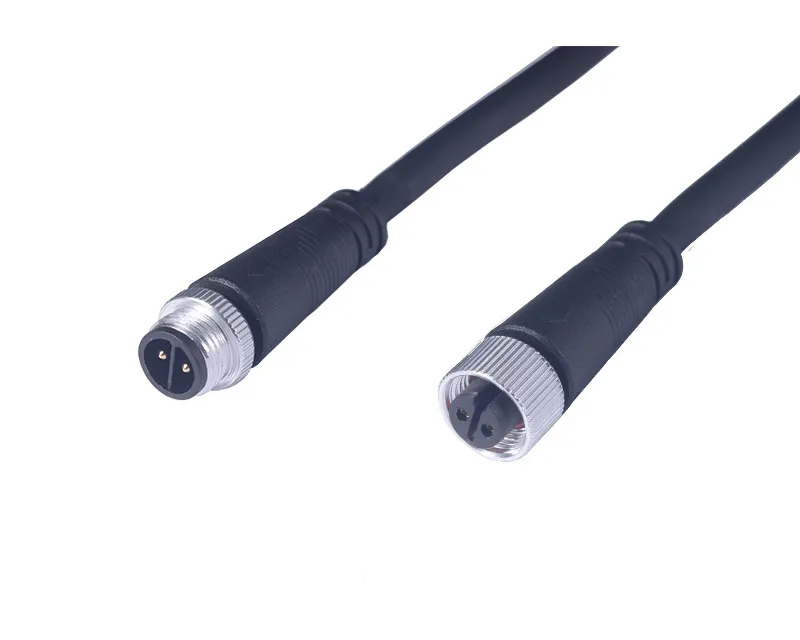

The M12 Metal Jiayunkang Waterproof Connector Connection Cable represents the pinnacle of reliable connectivity solutions for harsh industrial environments. Engineered with precision and durability in mind, this cable assembly combines a robust metal M12 connector with high-quality cable construction to deliver unmatched performance in demanding applications. Featuring an IP67 waterproof rating and 360° EMI shielding, this connection cable ensures secure data transmission and power delivery even in the most challenging conditions. The zinc alloy metal coupling nut provides superior mechanical strength and vibration resistance, while the gold-plated contacts maintain optimal conductivity and prevent corrosion. Ideal for industrial automation, sensor networks, and outdoor applications, this cable assembly offers a complete plug-and-play solution that reduces installation time and ensures long-term reliability.

Technical Excellence

• IP67-rated waterproof and dustproof protection

• 360° electromagnetic interference shielding

• Gold-plated contacts (0.2μm minimum thickness)

• Operating temperature: -40°C to +85°C

• Voltage rating: 60V AC/DC maximum

• Current capacity: 4A maximum

• Cable material: PUR or PVC options available

• Shield type: Braided copper shielding

• Mating cycles: ≥100 cycles guaranteed

Product Features
Premium Metal Construction
The connector features a zinc alloy metal coupling nut that provides exceptional durability and vibration resistance. The metal construction ensures reliable performance in high-stress industrial environments where Plastic connectors might fail.

Superior Waterproof Protection
With an IP67 rating, the connector offers complete protection against water immersion up to 1 meter for 30 minutes and total dust ingress prevention. The multiple sealing rings and precision engineering create an impermeable barrier against environmental contaminants.

Enhanced Signal Integrity
The 360° EMI shielding and gold-plated contacts work together to maintain signal integrity in electrically noisy environments. This ensures accurate data transmission for sensitive sensor applications and critical control systems.

Flexible Cable Options
Available with PUR or PVC cable jackets to suit different environmental requirements. PUR cables offer excellent oil and chemical resistance, while PVC cables provide good flexibility and cost-effectiveness.

Quick-Connect Design
The push-pull locking mechanism enables fast and secure connections without special tools. The audible click confirmation ensures proper mating every time, reducing installation errors.

Strain Relief System
Integrated strain relief protection prevents cable pulling damage and ensures long-term connection stability. The design distributes mechanical stress evenly along the cable length.

Color-Coded Housing
Available in multiple color options for easy circuit identification and troubleshooting. Standard colors include black, gray, and blue for different application requirements.

Product Advantages
Unmatched Reliability
The combination of metal construction, IP67 protection, and EMI shielding ensures reliable operation in the most demanding industrial environments, reducing system downtime and maintenance costs.

Easy Installation
The complete cable assembly eliminates the need for on-site connector assembly, saving installation time and ensuring consistent quality. The quick-connect design further reduces installation labor requirements.

Long Service Life
Superior materials and construction quality provide extended service life compared to Standard Connectors. The gold-plated contacts resist corrosion, while the metal nut withstands repeated mating cycles.

Versatile Application
Suitable for both power delivery and signal transmission applications. The shielded design supports various industrial protocols including IO-Link, Ethernet, and sensor communications.

Cost-Effective Solution
The ready-to-use cable assembly reduces total installation costs and eliminates the need for specialized assembly tools. The durable construction minimizes replacement needs over time.

Safety Compliance
Designed to meet international safety standards for industrial equipment. The secure locking mechanism and strain relief system prevent accidental disconnections.

Application Fields
Industrial Automation

• PLC system connections

• Sensor and actuator networks

• Motor control systems

• Robotic equipment connections

Process Control

• Measurement and instrumentation

• Control system wiring

• Sensor data acquisition

• Monitoring equipment connections

Transportation Systems

• Railway signaling equipment

• Automotive test systems

• Mobile machinery controls

• Marine navigation equipment

Outdoor Applications

• Weather monitoring stations

• Outdoor lighting systems

• Agricultural equipment

• Construction machinery

Energy Sector

• Wind turbine systems

• Solar power equipment

• Power distribution monitoring

• Battery management systems

Food and Beverage

• Processing equipment

• Packaging machinery

• Sanitary applications

• Quality control systems

Frequently Asked Questions (FAQ)

Q1: What is the maximum cable length available?
A: Standard lengths range from 0.5 to 20 meters. Custom lengths are available upon request for specific application requirements.

Q2: Can this cable withstand oil exposure?
A: Yes, when equipped with PUR cable jacket, the assembly provides excellent resistance to oils, chemicals, and abrasion.

Q3: Is the connector compatible with existing M12 systems?
A: Absolutely. The connector follows standard M12 specifications and is compatible with all standard M12 receptacles.

Q4: What is the bending radius of the cable?
A: The minimum bending radius is 8 times the cable diameter for permanent installation and 10 times for flexible applications.

Q5: How do I ensure proper waterproof sealing?
A: Ensure the coupling nut is fully tightened until you feel definite resistance. The O-ring should be clean and properly seated before connection.

Q6: Can the cable be used in continuous flexing applications?
A: While designed for durability, for continuous flexing applications we recommend specifying our high-flex version with specialized cable construction.

Q7: What is the delivery time for custom configurations?
A: Standard products ship within 3-5 days. Custom configurations typically require 2-3 weeks for production and testing.
