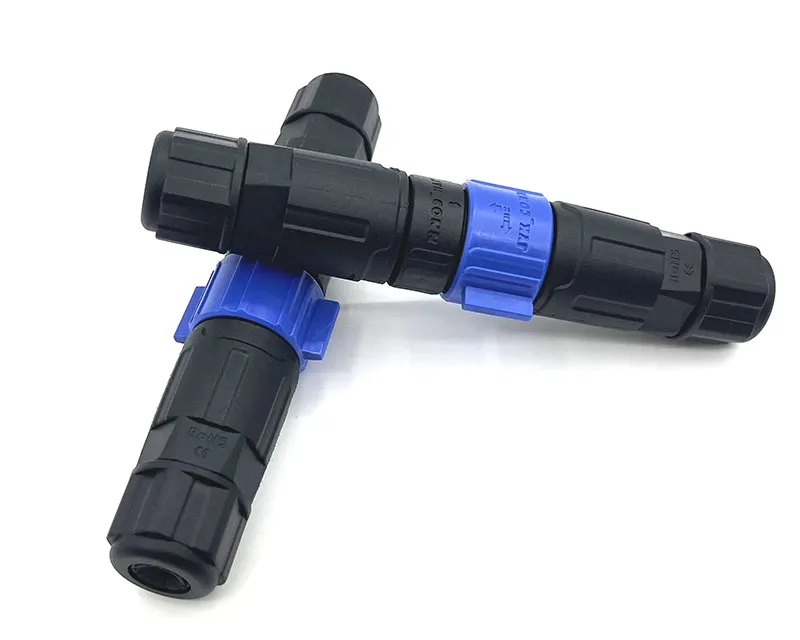

JQ19 Assembly Wireless Connector

The JQ19 Wireless Connector offers significant competitive advantages for modern industrial and IoT applications. Its hybrid wired-wireless design eliminates the need for separate communication cabling, reducing installation complexity and overall system costs. The multi-protocol support ensures compatibility with existing infrastructure while providing flexibility for future upgrades. The robust IP65 rating guarantees reliable performance in challenging environments where moisture, dust, or temperature variations would compromise conventional connectors. The extended wireless range enables de...

Inquiry

E-mail：sales01@szjiayunkang.com

WhatsApp：+86 13378428166

Detailed Description

Product Description
The JQ19 Assembly Wireless Connector represents a breakthrough in industrial connectivity solutions, combining robust physical connection capabilities with integrated wireless functionality. This innovative connector series is specifically engineered for applications where wired connections are impractical or where backup wireless communication is required. Designed and manufactured by Shenzhen Jiayunkang Technology, the JQ19 features a durable IP65-rated housing that protects both its advanced electrical contacts and integrated wireless modules from harsh environmental conditions. The connector supports multiple wireless protocols including Bluetooth 5.2 and WiFi 6, enabling seamless data transmission alongside traditional power delivery. With its dual-mode operation capability, the JQ19 provides unprecedented flexibility for modern industrial applications, IoT deployments, and smart infrastructure projects where reliable connectivity is critical.

Advanced Technical Features

Dual Connectivity Mode: Simultaneous support for wired power transmission and wireless data communication
Multi-Protocol Wireless Support: Integrated Bluetooth 5.2 and WiFi 6 modules for flexible connectivity options
IP65 Environmental Protection: Complete protection against dust and low-pressure water jets from any direction
High-Speed Data Transmission: Wireless data rates up to 150Mbps for real-time communication needs
Extended Wireless Range: Bluetooth range up to 200 meters and WiFi range up to 150 meters in open spaces
Smart Power Management: Intelligent power allocation between wired and wireless functionalities
LED Status Indicators: Visual feedback for connection status and data transmission activity
Industrial-Grade Durability: Operating temperature range from -40°C to +85°C

Features:

1. Quick auto-locking connection mode, easy docking, strong foolproof, blind plugging;

2. Multi-core product structure satisfies the diversified industrial requirements;

3. The GND is in contact first, and the live wire & zero wire are in contact later, which is safer and more reliable;

4. Using high-performance thermoplastic material, which has high temperature resistance, UV resistance, fire resistance, flame retardant, explosion-proof and oil resistance;

5. Adopt high-performance copper alloyed cores, gold plating, to guarantee electrical performance;

6. Protection level up to IP65/IP67;

7. Mainly used in LED display, stage lighting, audio electronics, automation equipment and other fields.

Product parameters:

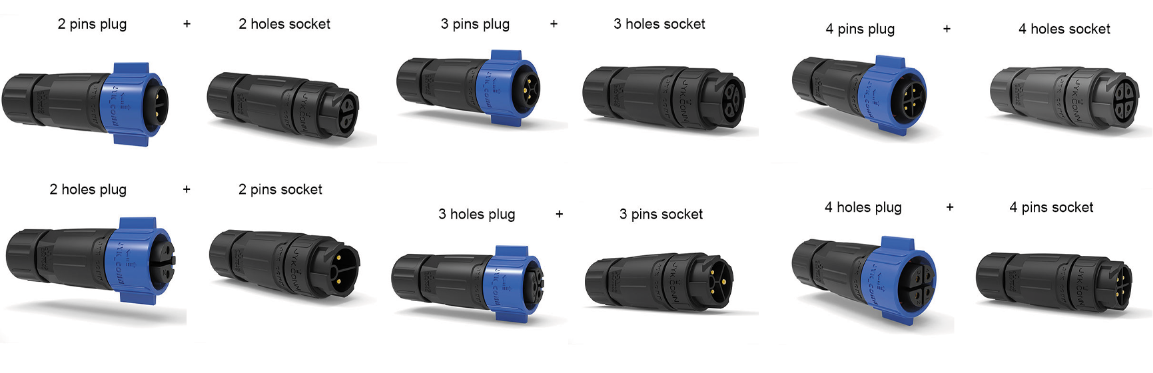

Cores layout:	2 cores	3 cores	4 cores	5 cores	6 cores	9 cores	3+5 cores
Rated voltage:	250V	250V	250V	250V	250V	250V	250V+50V
Rated current:	20A	20A	15A	15A	5A	5A	20A+5A
OD of cores:	Φ2.4mm	Φ2.4mm	Φ2.0mm	Φ2.0mm	Φ1.0mm	Φ1.0mm	Φ2.4mm + Φ1.0mm
Workable wire:	≤2.5mm² （16~12AWG）	≤2.5mm² （16~12AWG）	≤2.0mm² （20~16AWG）	≤2.0mm² （20~16AWG）	≤1.0mm² （24~18AWG）	≤0.5mm² （26~20AWG）	≤2.5mm² （16~12AWG）
Wire Gauge:	Assemble type: OD 6.0mm~10.0mm / Molded type: OD≤8.6mm
Protection level:	IP65/67
Connection mode:	Quick auto-locking type
Operating temperature:	-40℃ ~ +105℃
Shell & Insulation parts:	High-performance engineering plastic (PA or PVC)
Cores material:	Copper alloy

Application Fields

Industrial IoT (IIoT) deployments and smart factory implementations
Automated guided vehicles (AGVs) and robotic systems
Wireless sensor networks and remote monitoring systems
Smart building infrastructure and automation systems
Agricultural automation and environmental monitoring
Mobile equipment and temporary installation scenarios
Data backup and redundant communication systems
Remote control and telemetry applications

Frequently Asked Questions (FAQ)

Q1: How does the wireless functionality work alongside traditional wired connections?
A: The JQ19 operates in dual-mode, maintaining traditional power and signal transmission through its physical contacts while simultaneously providing wireless data communication capabilities through integrated modules.

Q2: What wireless protocols are supported?
A: The connector supports Bluetooth 5.2 for short-range communication and WiFi 6 for higher-speed data transmission, providing flexibility for different application requirements.

Q3: Is the wireless functionality affected by the metal housing?
A: The connector features optimized antenna design and placement to ensure reliable wireless performance despite the metal components, with testing confirming consistent performance within specified ranges.

Q4: Can the wireless features be disabled if not needed?
A: Yes, the wireless functionality can be disabled through a configuration interface to conserve power or meet specific security requirements.

Q5: What is the typical battery life for wireless operation?
A: When used in battery-powered applications, the smart power management system enables up to 2 years of operation on a single charge, depending on usage patterns.

Q6: How secure is the wireless communication?
A: The connector implements enterprise-grade security protocols including WPA3 encryption for WiFi and AES-256 encryption for Bluetooth connections.

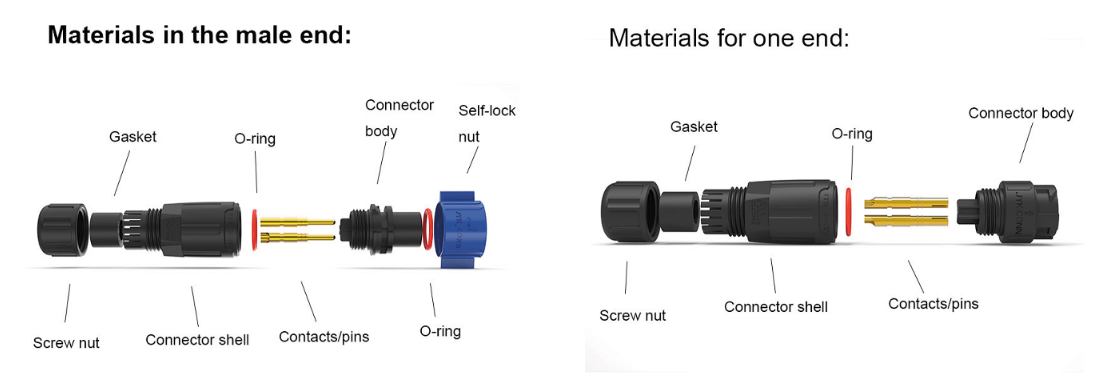

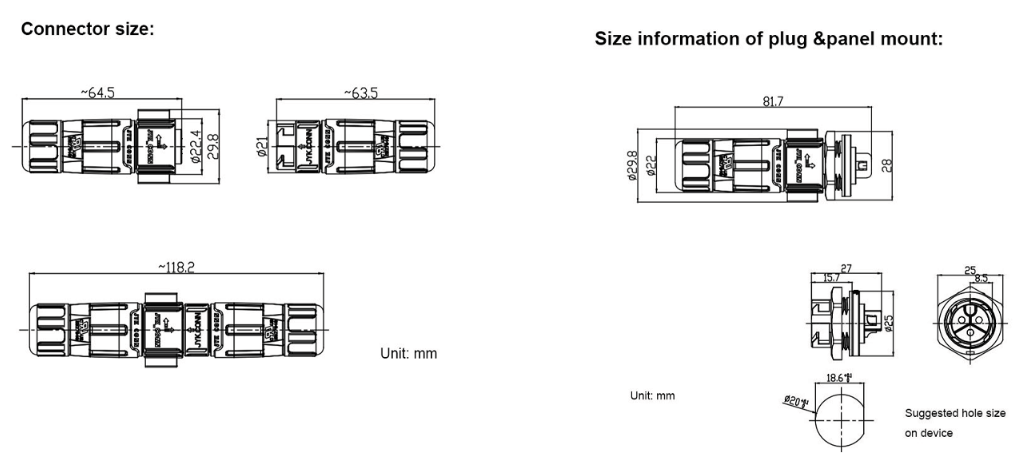

Details:
