Product Description
The Molded Type JQ19 IP67 Waterproof Wire Connector represents the pinnacle of reliability in device connection technology, specifically engineered for applications where environmental resilience is non-negotiable. This precision-molded connector integrates advanced sealing technologies with robust mechanical design to create a seamless, permanent protection system for electrical connections in challenging conditions. Unlike conventional connectors, the JQ19 features a unique one-piece molded construction that eliminates potential failure points, providing exceptional resistance to moisture, dust, chemicals, and mechanical stress.

Manufactured by Shenzhen Jiayunkang Technology, this connector exemplifies our commitment to engineering excellence in the device connectivity sector. The JQ19 incorporates a multi-layered sealing system including silicone rubber gaskets, precision-molded cable entry points, and a reinforced locking mechanism that maintains IP67 protection even under constant vibration and temperature fluctuations. The connector's design ensures consistent electrical performance with low contact resistance and stable conductivity, making it an ideal solution for critical applications where connection failure is not an option.

Product Features

• One-Piece Molded Construction: Seamless design eliminates entry points for moisture and contaminants

• IP67 Protection Level: Certified protection against dust ingress and water immersion up to 1 meter

• High-Grade Silicone Sealing: Maintains flexibility and sealing integrity across temperature variations

• Vibration-Resistant Locking: Double-lock mechanism ensures secure connection in dynamic environments

• Wide Temperature Range: Operates reliably from -40°C to +125°C

• Corrosion-Resistant Materials: Stainless steel components and protective coatings

• Quick-Connect Terminals: Tool-free installation with audible connection confirmation

• EMI/RFI Shielding: Optional full shielding package for sensitive applications

• Strain Relief System: Integrated cable protection against pull-out and bending stress

Features：

1. Quick auto-locking connection mode, easy docking, strong foolproof, blind plugging;

2. Multi-core product structure satisfies the diversified industrial requirements;

3. The GND is in contact first, and the live wire & zero wire are in contact later, which is safer and more reliable;

4. Using high-performance thermoplastic material, which has high temperature resistance, UV resistance, fire resistance, flame retardant, explosion-proof and oil resistance;

5. Adopt high-performance copper alloyed cores, gold plating, to guarantee electrical performance;

6. Protection level up to IP65/IP67;

7. Mainly used in LED display, stage lighting, audio electronics, automation equipment and other fields.

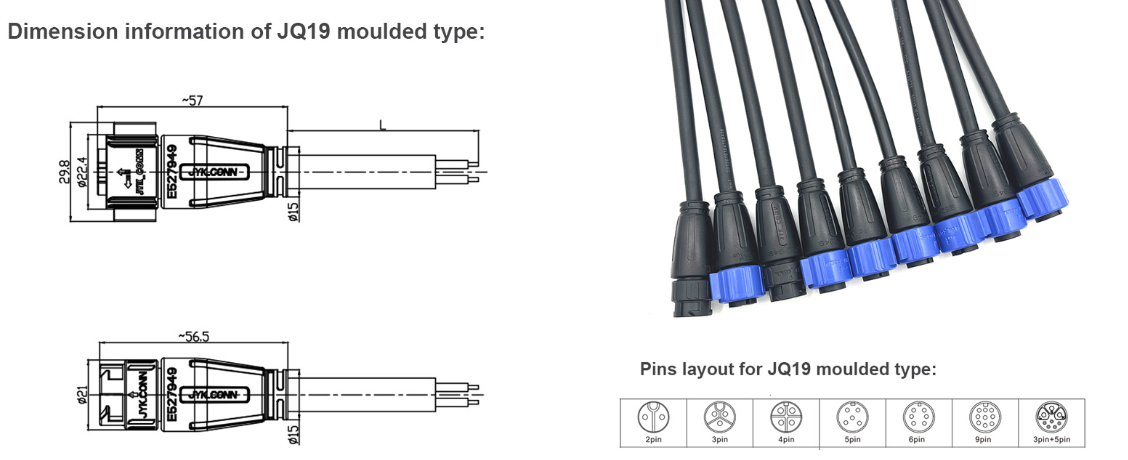

Parameters:

Application Fields

• Industrial automation control systems

• Outdoor electronic equipment and enclosures

• Agricultural machinery and equipment

• Marine and offshore applications

• Automotive and transportation systems

• Medical device manufacturing

• Renewable energy systems

• Telecommunications infrastructure

• Military and defense equipment

• Food processing machinery

Frequently Asked Questions (FAQ)

Q1: What does the IP67 rating mean for practical applications?
A: The IP67 certification ensures the connector is completely dust-tight and can withstand temporary immersion in water up to 1 meter deep for 30 minutes, making it suitable for outdoor and harsh environment applications.

Q2: How does the molded construction improve reliability?
A: The one-piece molded design eliminates multiple connection points where moisture and contaminants could enter, creating a monolithic barrier that significantly enhances long-term reliability.

Q3: Can the connector handle constant vibration?
A: Yes, the JQ19 features a dual-lock mechanism and strain relief system specifically designed to maintain secure connections in high-vibration environments up to 15Hz frequency.

Q4: What wire sizes are compatible?
A: The connector accommodates wire gauges from 22AWG to 14AWG, with multiple cable entry sizes from 4mm to 10mm diameter.

Q5: Is special equipment needed for installation?
A: No special tools are required. The connector features a tool-free installation design with color-coded terminals and audible connection confirmation.

Q6: Are custom lengths and configurations available?
A: Yes, we offer complete customization services including cable length, wire gauge, connector gender, and special shielding requirements.

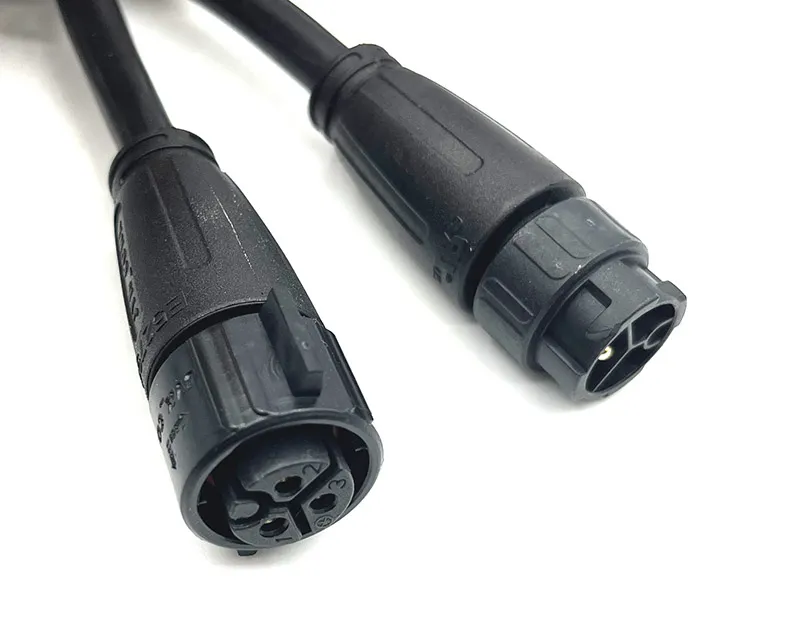

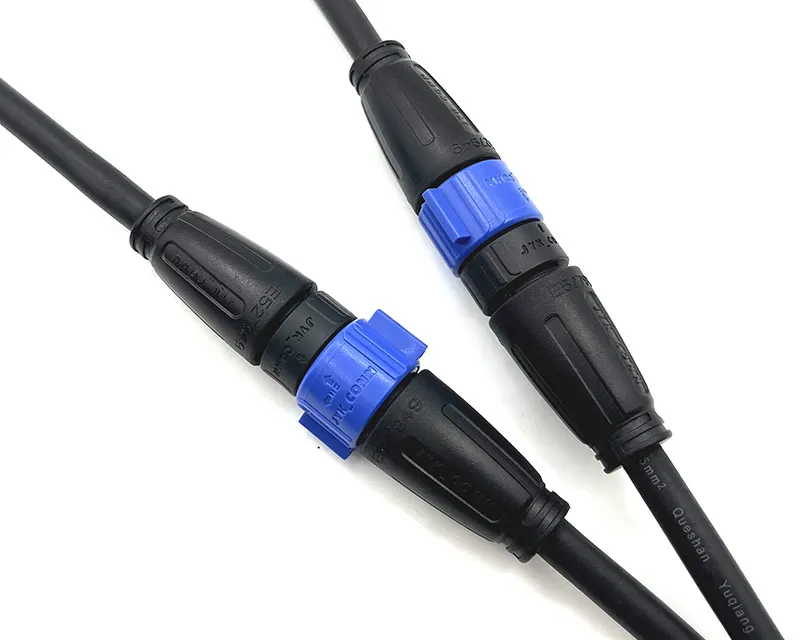

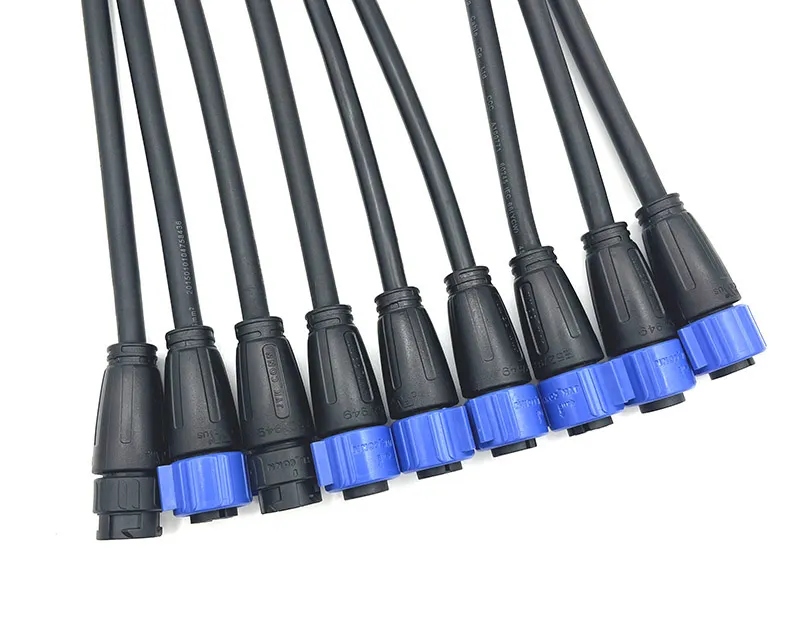

Details:
