Product Description

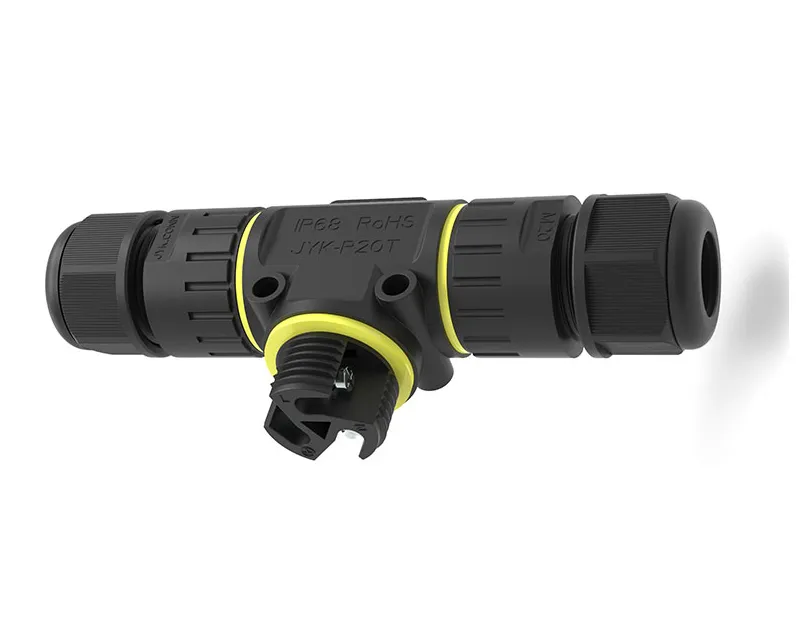

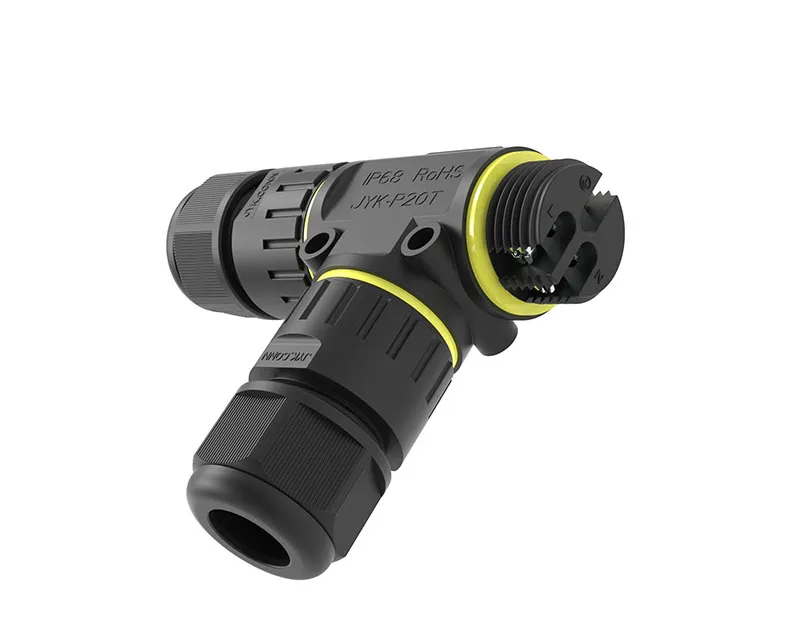

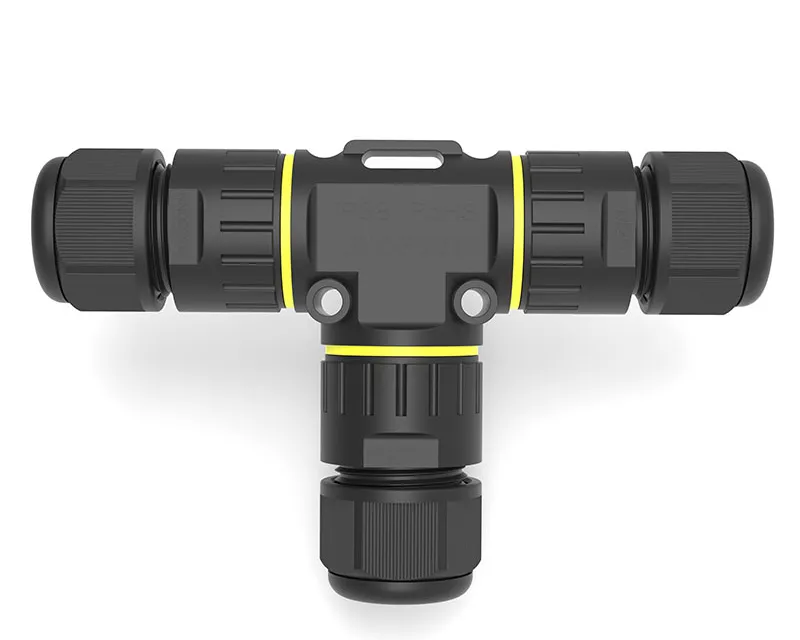

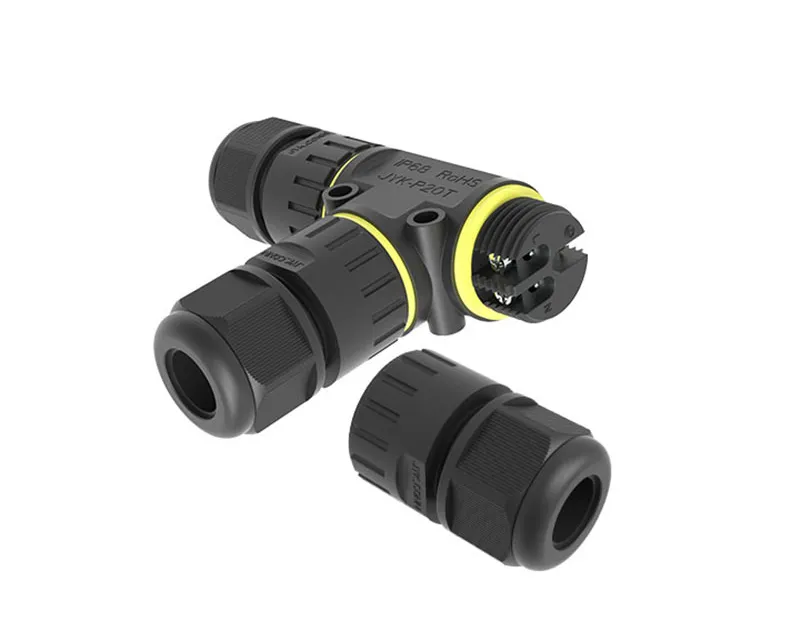

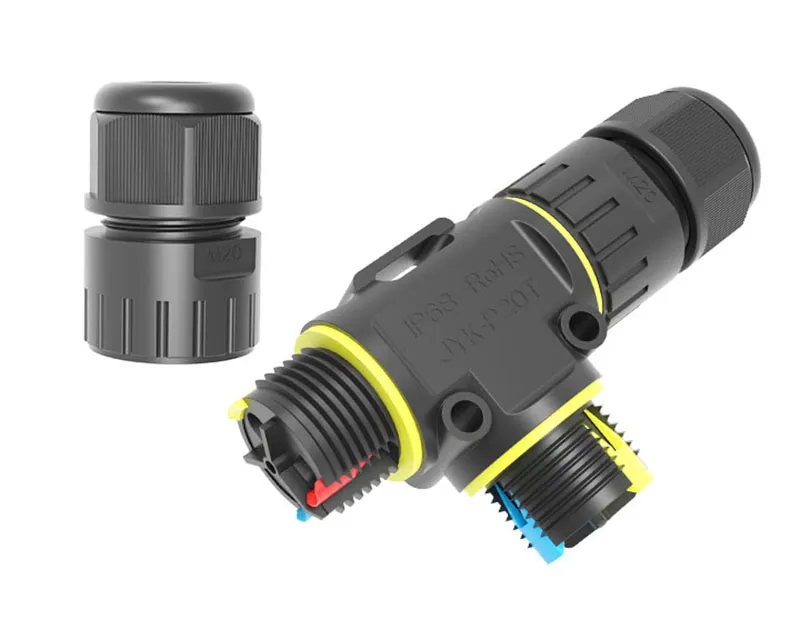

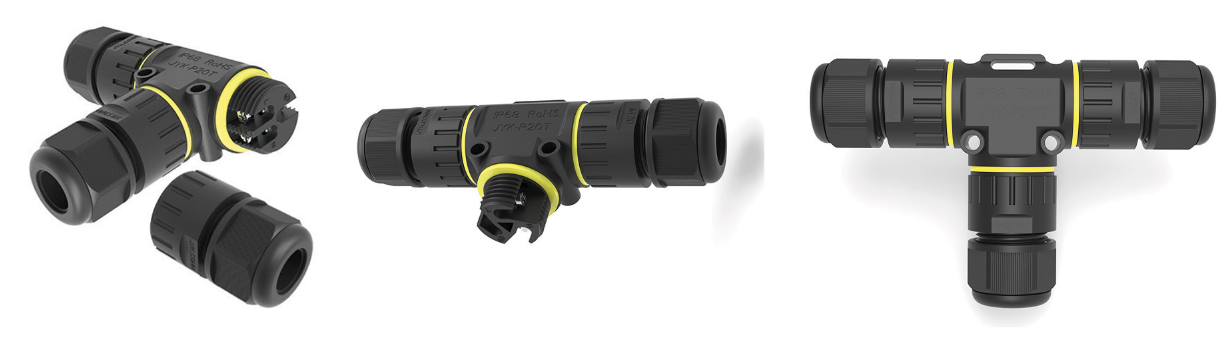

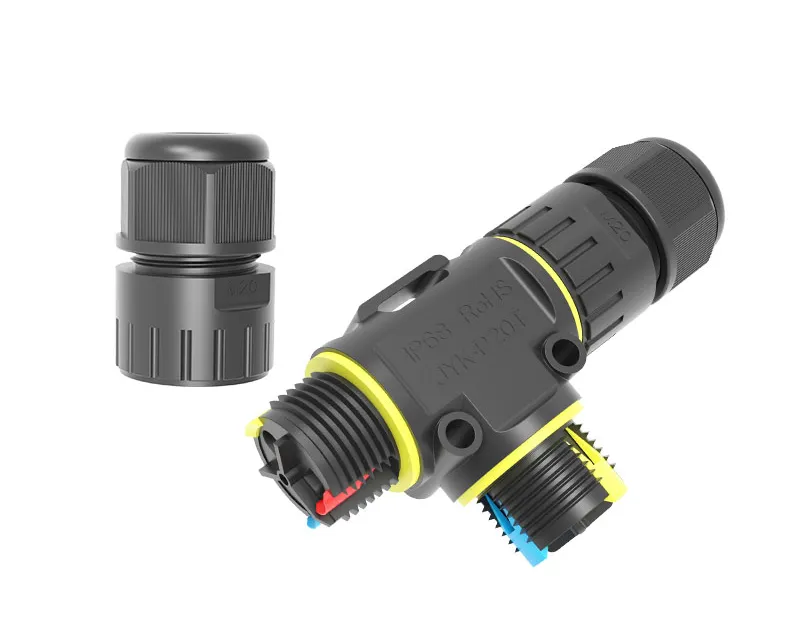

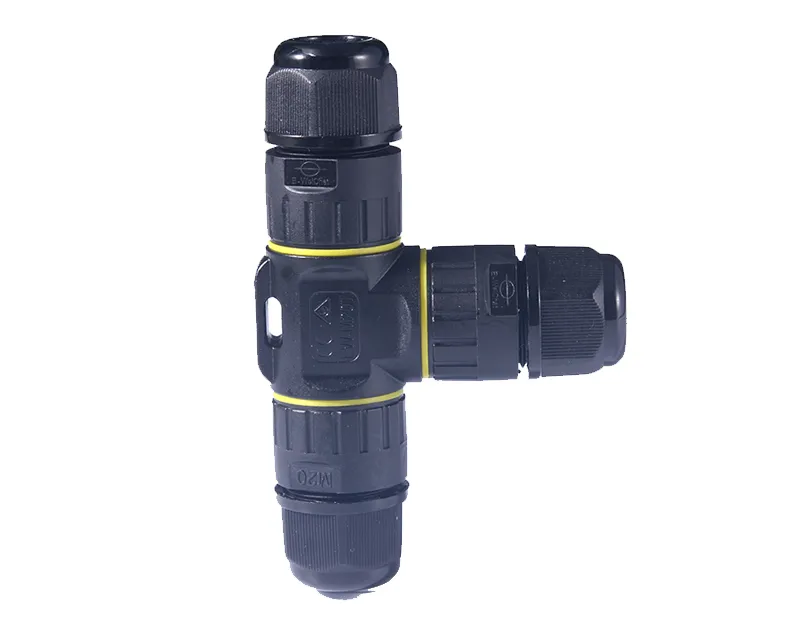

The T20 Tee Type Device Connector represents a breakthrough in industrial connectivity solutions, specifically engineered for complex wiring systems requiring branch connections. This innovative three-way connector enables efficient power and signal distribution from a main line to two branch lines, significantly simplifying installation in multi-device setups. Manufactured by Shenzhen Jiayunkang Technology, the T20 features an IP67-rated waterproof design with a robust housing that protects against moisture, dust, and chemical exposure. The connector utilizes precision-engineered contacts with gold plating for optimal conductivity and corrosion resistance, ensuring reliable performance in demanding industrial environments. Its unique tee configuration reduces installation time and minimizes potential failure points, making it an ideal solution for automation systems, control panels, and multi-sensor applications where space optimization and reliability are critical.

Product Features

• Tee-Type Configuration: Enables simultaneous connection of one input and two output devices

• IP67 Protection Level: Complete waterproof and dustproof performance

• Gold-Plated Contacts: Superior conductivity and corrosion resistance

• Vibration Resistance: Secure locking mechanism maintains connection integrity

• Wide Temperature Range: Operates from -40°C to +105°C

• EMI/RFI Shielding: 360° electromagnetic interference protection

• Quick-Connect System: Tool-free installation and disassembly

• Color-Coded Housing: Easy identification and proper orientation

• Strain Relief Design: Prevents cable damage and ensures long-term reliability

Product Advantages

The T20 Tee Type Connector offers significant advantages for industrial applications. Its unique three-way design reduces the need for multiple connectors and adapters, lowering installation costs and minimizing potential failure points. The IP67 rating ensures reliable operation in wet and dusty environments, reducing maintenance requirements and downtime. The gold-plated contacts provide stable electrical performance with minimal signal loss, crucial for sensitive industrial equipment. The vibration-resistant design maintains secure connections in high-shock environments, while the wide temperature range allows deployment in extreme climatic conditions. The quick-connect feature significantly reduces installation time, and the modular design enables easy system expansion and reconfiguration without complete rewiring.

Application Fields

• Industrial automation control systems

• Robotic workcells and assembly lines

• Sensor networks and monitoring systems

• PLC and control panel wiring

• Motor control and drive systems

• Packaging and material handling equipment

• Automotive manufacturing systems

• Food processing and beverage machinery

• Water treatment and purification systems

• Renewable energy control systems

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of using a tee-type connector?
A: The tee-type configuration allows branching from a single main line to two devices, reducing wiring complexity and installation time while minimizing connection points.

Q2: Can the T20 connector be used in outdoor applications?
A: Yes, with its IP67 rating and wide temperature range, the T20 is suitable for outdoor use and harsh environmental conditions.

Q3: What types of signals can the T20 connector handle?
A: The connector is designed to handle both power (up to 250V/10A) and signal transmissions, including data signals for sensors and control devices.

Q4: How does the quick-connect system work?
A: The connector features a push-pull locking mechanism that ensures secure mating without tools, with an audible click confirming proper connection.

Q5: Is the connector compatible with existing M12 systems?
A: The T20 uses standard M12 threading and specifications, ensuring compatibility with existing M12-based systems and devices.

Q6: What maintenance is required for the T20 connector?
A: The connector is designed for minimal maintenance. Periodic visual inspection and ensuring the sealing surfaces are clean are typically sufficient.
