Product Description

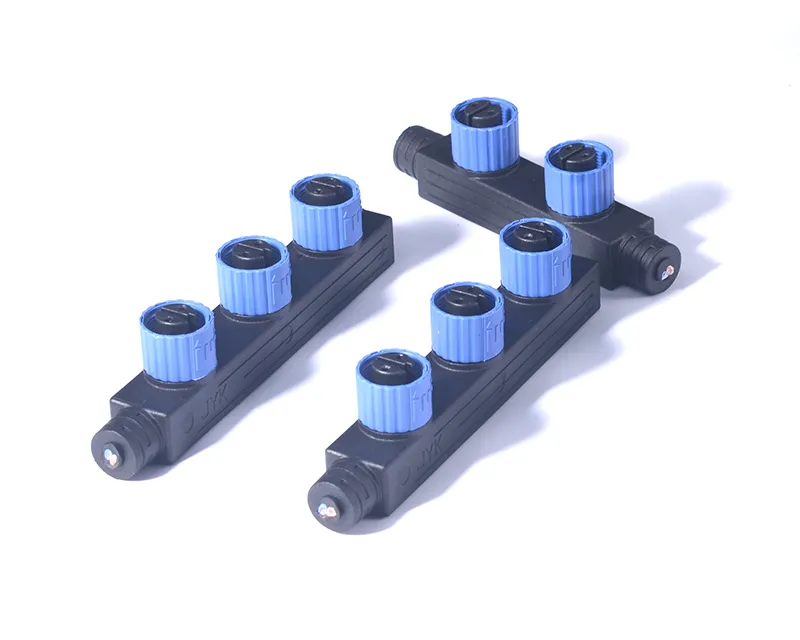

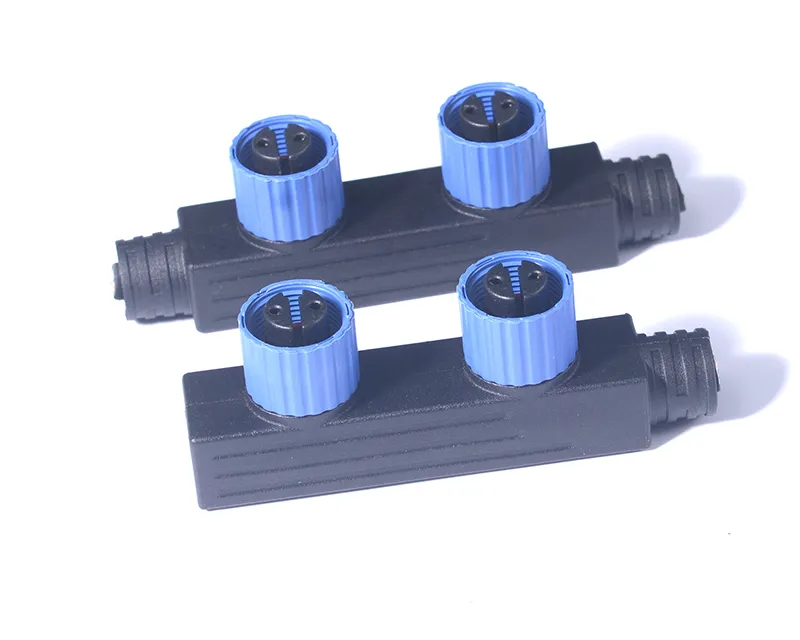

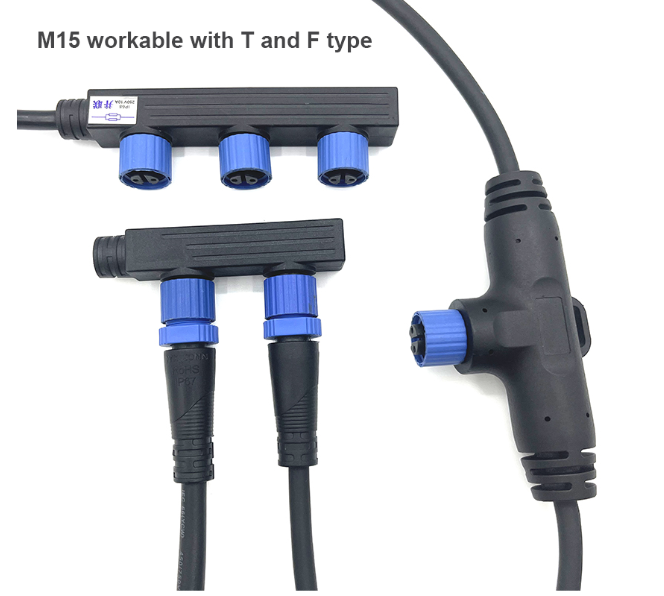

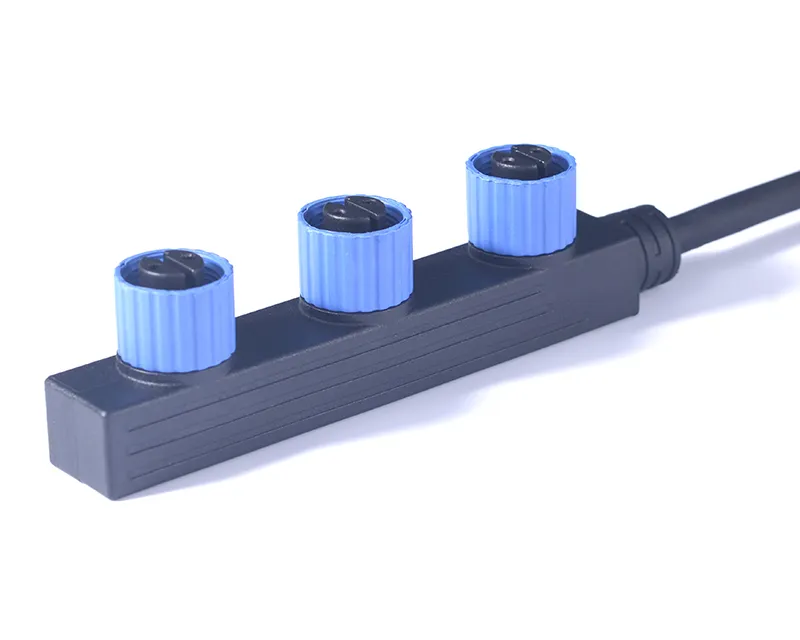

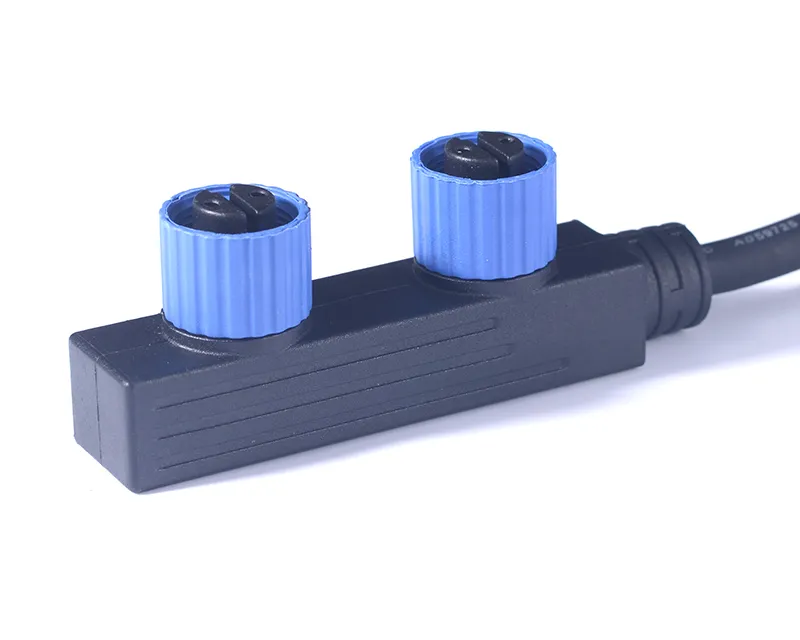

The M15-F type parallel and series module connector is a highly reliable waterproof connector designed for universal use across lighting systems, display screens, industrial machinery, and renewable energy applications. As demand for secure and efficient power and signal connections increases, the M15-F connector provides a professional solution for both parallel and series circuit configurations.

With a rugged waterproof housing, advanced sealing structure, and precision-engineered copper contacts, this connector ensures consistent conductivity, low contact resistance, and long service life. Its compact yet powerful design makes it suitable for space-limited devices while maintaining stable performance under demanding outdoor conditions.

The M15-F module connector is widely recognized for its adaptability in connecting LED lamps, display modules, energy storage systems, and industrial automation equipment. Its ability to support both parallel and series wiring modes makes it an essential choice for engineers, manufacturers, and system integrators who require flexible connectivity.

Features:

·Screw threaded installation, easy to use and install, stable in utilization.

·Customized for LED street lamp module products, compliant with CSA standards.

·Gold plated electric cores, high corrosion resistance and electrical conductivity, effectively cope with the temperature rise caused by the current.

·The locking ring, rubber core and lagging are all made of high thermoplastic PA material, which is UV resistant and high temperature resistance to 125°C ball pressure test.

·Screw threaded plugging, compression sealing, integrated injection molding, partition and stuck point stop design are adopted to ensure long-term and reliable waterproofing.

·The contact parts are made of solid cores, which meet the requirements of national standard safety regulations.

·Waterproof grade: IP67/IP68.

Product Advantages

• Universal Application – Designed for both parallel and series circuits, making it suitable for versatile wiring needs.

• Enhanced Safety – Waterproof, dustproof, and flame-retardant design minimizes risks of short circuits and environmental damage.

• Reliable Outdoor Use – With strong sealing performance, the connector is ideal for LED lighting, display boards, and solar power installations.

• Time-Saving Installation – Quick connection system allows efficient assembly, reducing labor costs in large-scale projects.

• Long Service Life – High-quality materials and robust design ensure long-term stability and minimal maintenance.

• Cost-Effective Solution – Provides durable and stable performance, lowering replacement and repair costs.

• Global Standard Compliance – Meets international safety and performance standards, ensuring broad usability.

Product parameters:

Product Application Fields

The M15-F type module connector is designed for a wide range of applications, particularly where parallel and series wiring are required:

• LED Lighting Systems – Ideal for LED lamps, LED strips, LED street lights, and decorative lighting requiring stable waterproof connections.

• Display Screens – Used in outdoor LED billboards, digital signage, and modular display units.

• Energy Storage and Renewable Energy – Suitable for battery modules, solar panel connections, and renewable energy storage systems.

• Consumer Electronics – Supports small appliances and smart devices requiring secure electrical connectivity.

• Industrial Equipment – Reliable for automation machinery, communication modules, and control systems.

• Automotive and Marine Applications – Applicable in vehicle lighting, electric vehicles, motorcycles, and marine electronics.

• Security and Monitoring Systems – Provides waterproof connections for surveillance equipment and outdoor monitoring devices.

Product FAQ

Q1: What is the waterproof rating of the M15-F connector?
A1: The M15-F connector is rated IP67/IP68, ensuring reliable protection against dust and water, making it suitable for outdoor applications.

Q2: Can the M15-F connector be used for both parallel and series wiring?
A2: Yes, it is specifically designed to support both configurations, offering maximum flexibility in circuit design.

Q3: What industries commonly use the M15-F connector?
A3: It is widely used in LED lighting, display modules, industrial machinery, renewable energy systems, automotive electronics, and outdoor security devices.

Q4: Is the connector easy to install?
A4: Absolutely. It is designed with quick-lock mechanisms for fast and secure installation without requiring specialized tools.

Q5: How durable is the M15-F connector?
A5: Constructed from high-quality flame-retardant housing and corrosion-resistant contacts, it offers long-lasting durability in harsh environments.

Q6: Can it handle both power and signal connections?
A6: Yes, the M15-F connector is suitable for both low-voltage power supply and signal transmission.

Q7: Does it meet international safety standards?
A7: Yes, the connector is manufactured under strict quality control and complies with relevant global standards.
