Product Description
The JQ16 Quick Auto-locking Plug Socket Molded represents a breakthrough in industrial connectivity solutions, specifically engineered for demanding device connection applications. This innovative connector series combines advanced quick-lock technology with robust molded construction to deliver unparalleled reliability in industrial environments. Featuring a unique auto-locking mechanism that ensures secure mating with an audible confirmation click, the JQ16 eliminates connection errors and reduces installation time by up to 50%. The molded design provides exceptional strain relief and environmental protection, making it ideal for applications where vibration, moisture, and mechanical stress are constant challenges. With its superior electrical performance and rugged construction, this connector series sets new standards for reliability in factory automation, industrial equipment, and device interconnection systems.

Advanced Technical Features

•


• Quick Auto-locking Mechanism: Patented push-pull design with positive locking system that provides audible and tactile connection confirmation

• IP68 Environmental Protection: Superior sealing performance against dust, water, and chemical ingress, suitable for harsh industrial environments

• High-Density Contact Design: Space-efficient configuration supporting up to 16 contacts while maintaining compact dimensions

• 360° EMI Shielding: Comprehensive electromagnetic interference protection for signal integrity in noisy industrial environments

• High-Temperature Resistance: Engineered to perform reliably in temperature ranges from -40°C to +125°C

• Vibration Resistance: Excellent performance under severe vibration conditions (up to 100Hz/100G)

• Color-Coded Housing: Visual identification system for easy polarity and voltage level recognition

• Molded Strain Relief: Integrated cable protection that exceeds 100N pull-out force requirements

Applications:

It is mainly used in LED, outdoor illumination, lighting, lamps, stage lighting, medical equipment and other fields.

• Factory Automation Systems: Robotic arms, conveyor systems, and automated guided vehicles

• Industrial Machinery: CNC machines, injection molding equipment, and packaging machinery

• Process Control Equipment: Sensors, actuators, and measurement devices

• Energy Management Systems: Power distribution units and energy monitoring devices

• Transportation Infrastructure: Railway signaling systems and automotive test equipment

• Medical Equipment: Diagnostic devices and patient monitoring systems

• Renewable Energy Systems: Solar inverters and wind turbine control systems

• Telecommunications Infrastructure: Base station equipment and network hardware

Features:

1. Quick auto-locking connection mode, easy docking, strong foolproof, blind plugging;

2. Multi-core product structure satisfies the diversified industrial requirements;

3. The GND is in contact first, and the live wire & zero wire are in contact later, which is safer and more reliable;

4. Using high-performance thermoplastic material, which has high temperature resistance, UV resistance, fire resistance, flame retardant and oil resistance;

5. Adopt high-performance copper alloyed cores, gold plating, to guarantee electrical performance;

6. Protection level up to IP65/IP67;

7. Mainly used in LED, outdoor illumination, lighting, lamps, stage lighting, medical equipment and other fields.

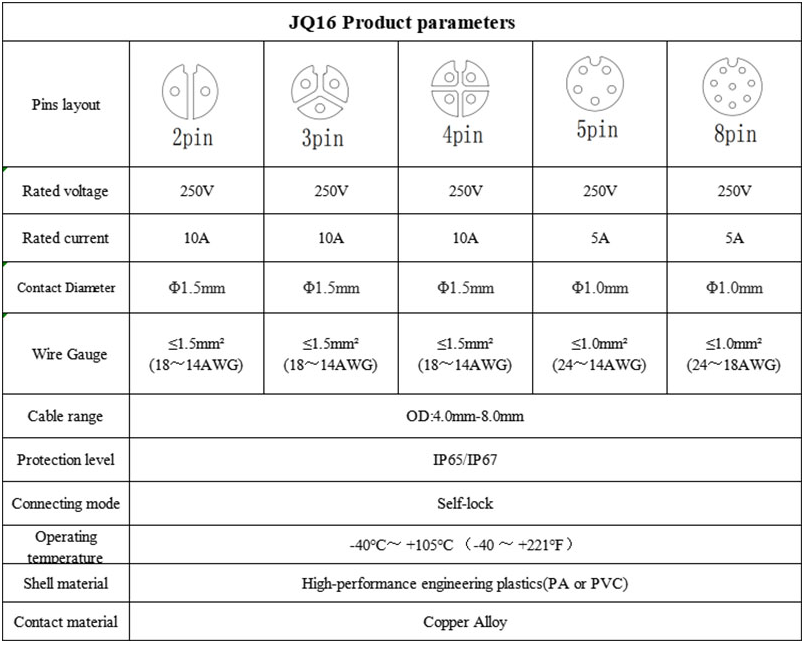

Parameters:

Comprehensive FAQ Section

Q1: How does the auto-locking mechanism work?
A: The JQ16 features a sophisticated push-pull mechanism that automatically engages locking tabs when properly connected. Users simply push the connector into place until hearing a distinct click, ensuring secure mating without additional tools or manual locking procedures.

Q2: What environmental protection does the IP68 rating provide?
A: The IP68 rating guarantees complete protection against dust ingress and continuous immersion in water beyond 1 meter depth, making it suitable for the most demanding industrial and outdoor applications.

Q3: Can the connector withstand harsh chemical environments?
A: Yes, the housing material is resistant to most industrial chemicals, oils, and solvents. Specific chemical compatibility data is available in our technical documentation.

Q4: What is the expected mating cycle life?
A: The JQ16 is rated for a minimum of 5,000 mating cycles while maintaining all performance characteristics, including waterproof integrity.

Q5: Are custom cable lengths and configurations available?
A: We offer complete customization services including cable length, jacket material, color coding, and special pin configurations to meet specific application requirements.

Q6: How does the EMI shielding performance compare to Standard Connectors?
A: The 360° shielding provides attenuation exceeding 100dB at 1GHz, significantly outperforming standard Industrial Connectors and ensuring reliable operation in high-noise environments.

Q7: What quality certifications does the product hold?
A: The JQ16 series is certified to UL, CE, RoHS, and REACH standards, with additional certifications available upon request for specific industry requirements.
