Product Description
The Quick Self-Locking Waterproof Male and Female Terminal Wiring Connector represents the next generation of electrical connection technology, specifically engineered for rapid, secure, and reliable installations in demanding environments. This innovative connector system features an intelligent self-locking mechanism that ensures perfect mating with audible confirmation, eliminating connection errors while providing IP68-rated waterproof protection. Designed for professionals who value both efficiency and reliability, these connectors incorporate gold-plated terminals for optimal conductivity and corrosion resistance. The comprehensive male and female terminal system allows for complete wiring solutions in various applications, from industrial automation to outdoor lighting systems, providing a superior alternative to traditional wiring methods.

Product Features
Intuitive Self-Locking Mechanism
The patented quick-lock system provides instant connection with audible click confirmation, ensuring proper mating without tools. The innovative design prevents incomplete connections and reduces installation time by up to 70% compared to traditional screw-type connectors.

Superior Environmental Protection
Rated IP68 for complete protection against dust, water immersion, and high-pressure jets. The multi-layer sealing system includes primary silicone seals and secondary environmental barriers, ensuring reliability in the most challenging conditions.

Advanced Contact Technology
Precision-engineered male and female terminals feature 0.2μm gold plating over nickel barrier, providing excellent conductivity and corrosion resistance. The redundant contact design ensures maintained connection integrity even under vibration.

Universal Wiring Compatibility
Accepts wire ranges from 0.5mm² to 2.5mm² (20-14 AWG), accommodating most industrial and commercial wiring requirements. The captive screw termination system ensures secure connections without damaging conductors.

Polarized Design
Keyed housing design prevents incorrect mating and ensures proper orientation, critical for safety and system functionality in multi-pin configurations.

Visual Status Indicators
Color-coded housing and visible locking indicators provide immediate connection status confirmation, reducing troubleshooting time and preventing operational errors.

Product Advantages
Unmatched Installation Efficiency
The self-locking mechanism reduces installation time by up to 70% compared to traditional connectors, significantly lowering labor costs and project timelines while eliminating the need for special tools.

Enhanced Reliability
IP68 rating ensures operational integrity in extreme environments, reducing maintenance requirements and system downtime. The robust design withstands vibration, thermal cycling, and mechanical stress.

Superior Electrical Performance
Gold-plated contacts maintain stable electrical characteristics over time, with low contact resistance and excellent current carrying capacity, ensuring consistent system performance.

Safety Compliance
Meets international safety standards including UL, CE, and RoHS requirements, providing peace of mind for critical applications and ensuring regulatory compliance.

Cost-Effective Solution
Reduced installation time, minimal maintenance requirements, and long service life provide exceptional total cost of ownership compared to conventional wiring methods.

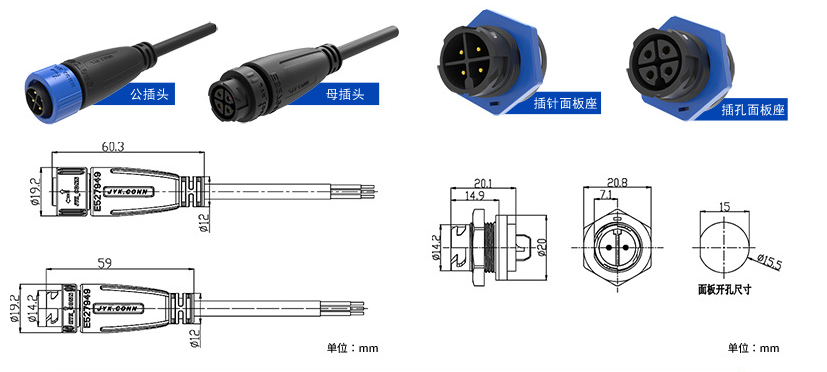

Product parameters

Product Model: JQ16 with Cable

Number of cores :2/3/4/5/8 pins

Shell material: Nylon

Rated voltage :300V

Rated current :5 to 10A

Waterproof rating :IP67

Operating temperature :-40℃±105℃

Cable diameter: 4.5- 8.2

Connection method: Self-locking plug

The default length of the cable is 60mm

If you need other lengths of cables, please contact customer service for customization

Application Fields
Industrial Automation

• Sensor and actuator connections

• Control panel wiring

• Motor power connections

• PLC system interfaces

Outdoor Lighting Systems

• Landscape lighting installations

• Street light connections

• Architectural lighting systems

• Garden and pathway lighting

Marine and Offshore

• Boat electrical systems

• Offshore platform wiring

• Navigation equipment connections

• Marine lighting installations

Renewable Energy

• Solar panel connections

• Wind turbine systems

• Battery storage connections

• Charge controller wiring

Transportation Infrastructure

• Traffic control systems

• Railway signaling

• EV charging stations

• Airport ground lighting

Building Services

• HVAC system connections

• Security system wiring

• Emergency lighting circuits

• Building automation systems

Frequently Asked Questions (FAQ)

Q1: How does the self-locking mechanism work?
A: The connector features a push-to-connect design with a spring-loaded locking mechanism. When properly engaged, an audible click confirms secure connection, and the lock automatically engages to prevent accidental disconnection.

Q2: Can these connectors be used in underwater applications?
A: Yes, with an IP68 rating, they can withstand immersion up to 1.5 meters for 24 hours, making them suitable for permanent underwater applications.

Q3: What tools are required for installation?
A: No special tools are needed. The connectors feature tool-free operation for both connection and disconnection, though a simple release tool is provided for easy disengagement.

Q4: Are these connectors reusable?
A: Yes, they are designed for multiple mating cycles (500+ minimum) and can be easily disconnected using the provided release tool without damaging the connector.

Q5: What wire types are compatible?
A: The connectors accept most common wire types including stranded and solid copper conductors from 0.5mm² to 2.5mm² (20-14 AWG).

Q6: How are the connectors disassembled?
A: A small release tool is inserted into the disengagement slot, which depresses the locking mechanism and allows smooth separation without damaging the connector.

Q7: Are different pin configurations available?
A: Yes, we offer 2-12 pin configurations with various contact arrangements to meet specific application requirements.

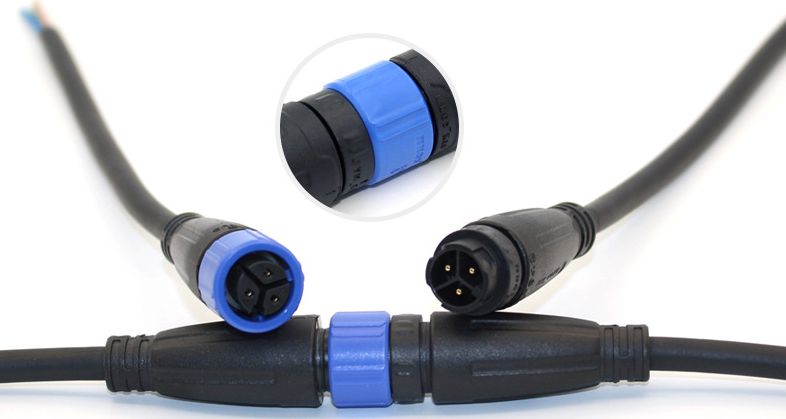

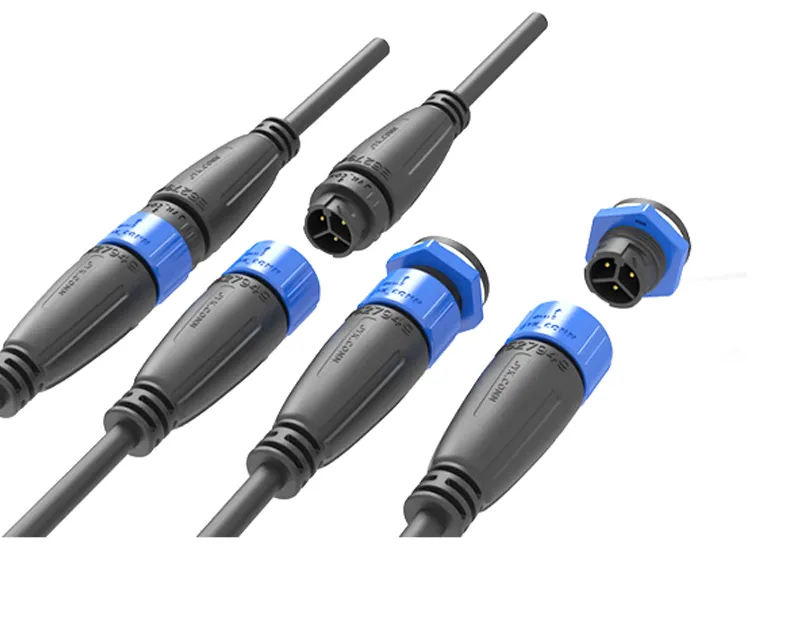

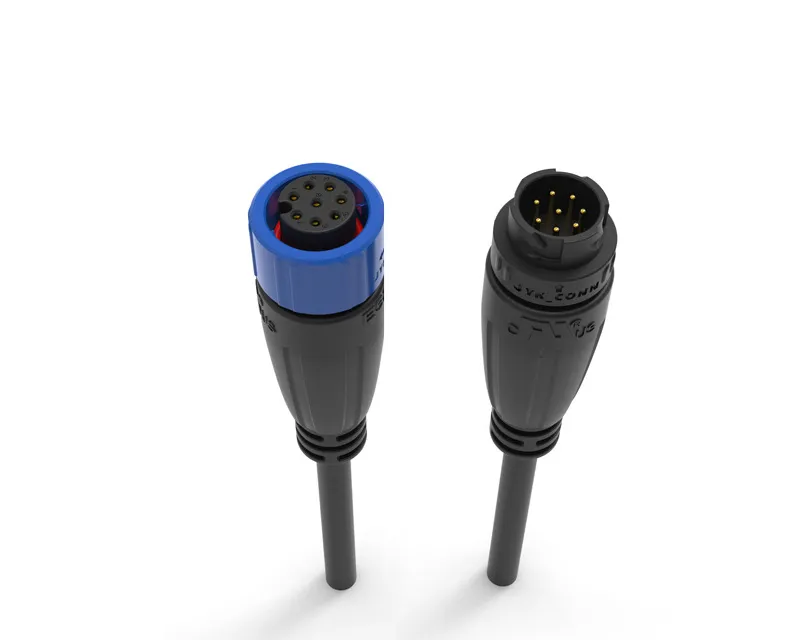

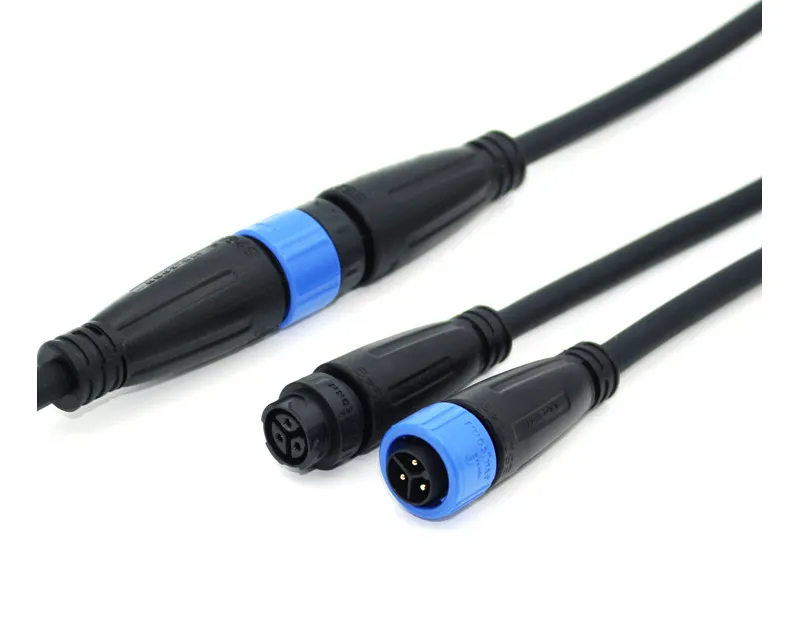

Display of waterproof plug
