Product Description

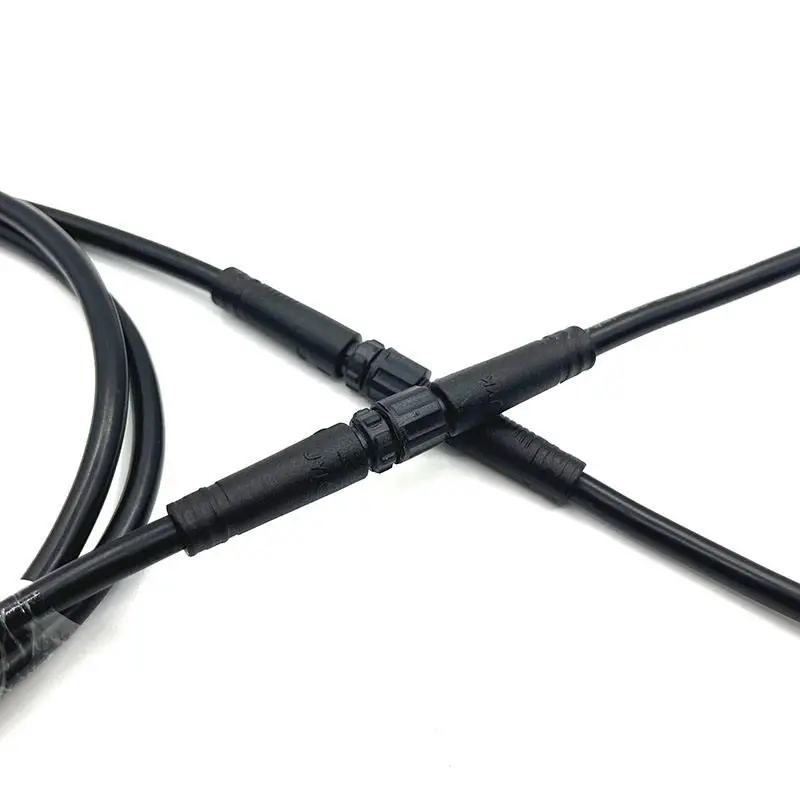

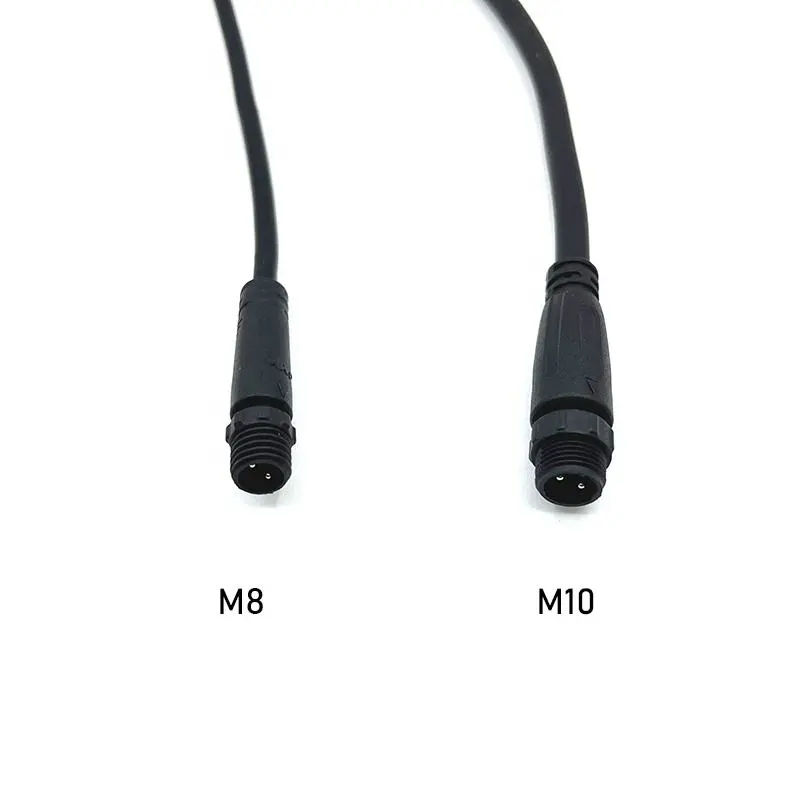

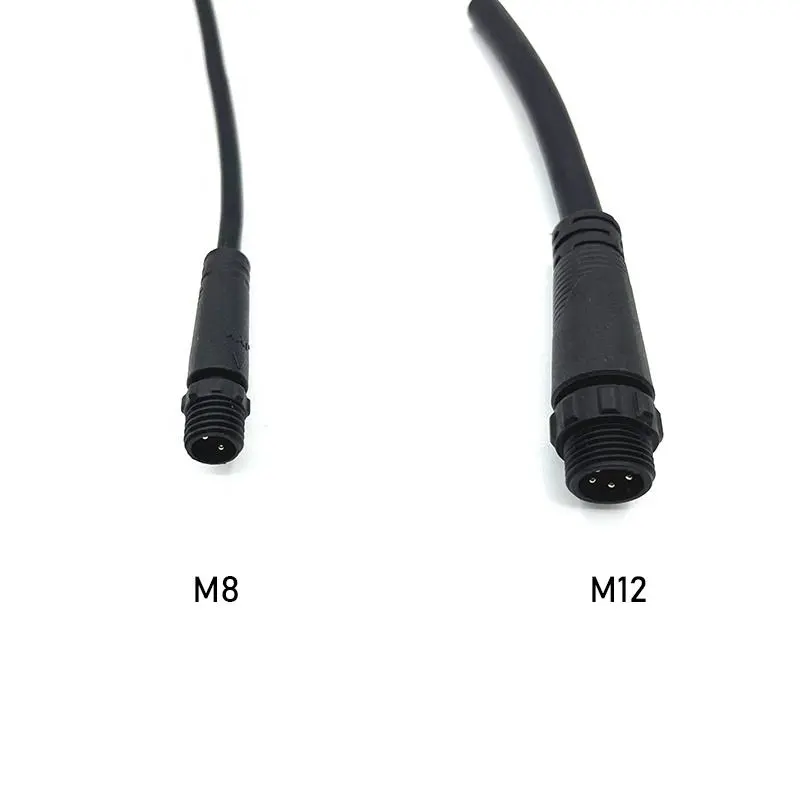

The M8 2-Pin Underwater Low-Voltage Connector is a compact, high-performance circular connector engineered to deliver unwavering reliability in low-voltage power applications exposed to moisture, dust, and harsh conditions. Featuring a robust M8 x 1.0 metric threading, this 2-pin connector is specifically designed for secure and stable connections in environments where failure is not an option. It provides a complete solution, typically comprising a panel-mount or cable-mount receptacle and a plug, ensuring a seamless and protected power link for a wide range of equipment. Built to meet stringent international protection standards, this connector is the ideal choice for engineers and system integrators who prioritize durability and operational continuity in their outdoor, industrial, and marine applications.

Product Features

IP68 Rated Waterproof Performance: Guarantees complete protection against dust ingress and long-term immersion in water under specified pressure and depth conditions.

Compact M8 Form Factor: Its small size makes it perfect for space-constrained applications without compromising on performance.

2-Pin Configuration for Power: Dedicated to low-voltage DC power transmission, commonly used in 12V or 24V systems.

Robust Metal or High-Grade Plastic Housings: Options available to suit different durability, weight, and cost requirements, all offering excellent resistance to impact and environmental stress cracking.

Secure Screw-Locking Mechanism: The M8 threading ensures a vibration-proof connection that will not loosen accidentally.

High-Quality Sealing Rings: Integrated O-rings provide a superior seal against moisture and dust.

Wide Operating Temperature Range: Consistently performs in both high and low-temperature environments.

Flexible Cable Options: Available with various cable jackets (such as PUR or PVC) for flexibility, oil resistance, and durability against abrasion.

Product Advantages

Enhanced System Reliability: Drastically reduces downtime and maintenance costs by preventing connection failures caused by water, humidity, or dust contamination. This leads to a lower total cost of ownership.

Simplified Installation and Maintenance: The straightforward screw-locking mechanism allows for quick mating and unmating without specialized tools, speeding up field servicing and equipment setup.

Superior Environmental Resilience: Engineered to withstand not just water but also exposure to UV radiation, oils, chemicals, and mechanical stress, ensuring longevity in the toughest settings.

Global Standards Compliance: Manufactured to meet relevant IEC standards, ensuring compatibility and safety for international markets and applications.

Optimized for Low-Voltage Safety: Provides a safe and reliable connection for Class 2 or Class II circuits, which are common in LED and control systems, minimizing risks associated with electrical faults.

Versatile Integration: Its compact design and reliable performance make it easy to integrate into new product designs or retrofit into existing systems for an immediate upgrade in connection integrity.

Product Application Fields

The M8 2-Pin Underwater connector is versatile and finds critical use across numerous industries:

Outdoor & Architectural LED Lighting: Powering waterproof LED strips, garden lights, facade illumination, and underwater lighting features in fountains or pools.

Industrial Automation & Control Systems: Connecting sensors, actuators, and low-power devices on factory floors, robotic arms, and conveyor systems where wash-downs are common.

Marine and Aquatic Electronics: Ideal for navigation lights, bilge pump connections, small sonar devices, and instrumentation on boats and underwater equipment.

Outdoor Digital Signage & LED Displays: Providing a reliable power link to display modules and cabinets that are exposed to rain and humidity.

Security and Surveillance: Powering outdoor CCTV cameras, security lights, and other monitoring equipment in all weather conditions.

Renewable Energy Systems: Used in solar panel wiring and monitoring sensors within low-voltage DC circuits.

Consumer & Portable Electronics: For ruggedized equipment, portable lights, and recreational devices requiring a waterproof power connection.

Product FQA

Q1: What is the IP rating of this connector, and what does it mean?
A1: This M8 Connector is rated IP68. The "6" signifies it is completely dust-tight. The "8" means it can withstand continuous immersion in water under conditions specified by the manufacturer (e.g., beyond 1 meter depth for a defined time). It is perfectly suited for submerged applications.

Q2: What is the maximum voltage and current rating for this 2-pin version?
A2: This connector is designed for low-voltage applications. Typical maximum ratings are up to 50V DC and 4 Amps per pin. Always check the specific product datasheet for precise ratings for your model.

Q3: What cable types are these connectors available with?
A3: We offer them with a range of cable options. PUR (Polyurethane) cables are highly recommended for their excellent flexibility, abrasion resistance, and tolerance to oils and chemicals. PVC cables are a cost-effective alternative for less demanding environments.

Q4: Is this connector compatible with other brands of M8 connectors?
A4: The M8 form factor is standardized, ensuring mechanical compatibility with other compliant M8 connectors. For optimal performance and to guarantee the IP68 seal, we recommend using mating halves from the same series to ensure the seals and materials are designed to work together perfectly.

Q5: How do I ensure the connector maintains its waterproof seal during installation?
A5: Proper installation is key. Ensure the cable gland is correctly tightened onto the cable outer jacket, and the internal contacts are crimped securely. Always check that the main O-ring is clean, properly seated, and undamaged before mating the connector, and tighten the coupling nut firmly by hand until snug.
