In the demanding world of LED lighting and industrial automation, a reliable connection is not just a convenience—it's a necessity. Our M8 3-pin LED Cable Connector set is engineered to meet this critical need. Designed specifically for low-voltage power transmission to LED fixtures, street lights, display screens, and machinery, this connector pair delivers unwavering performance in challenging environments. Combining a robust mechanical design with superior waterproofing, it ensures your systems remain operational, safe, and efficient, reducing maintenance costs and downtime.

Product Description

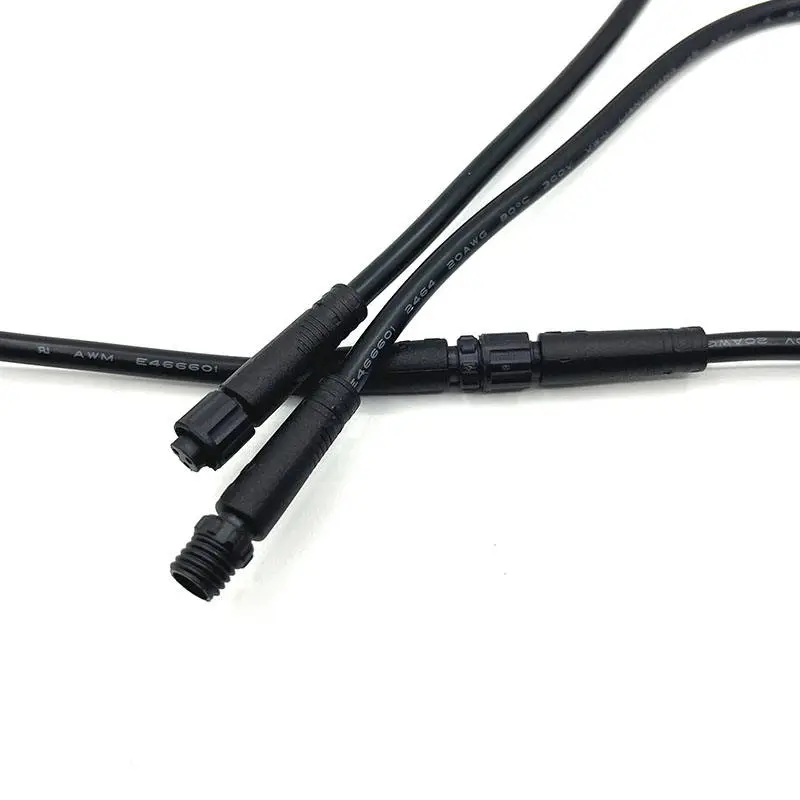

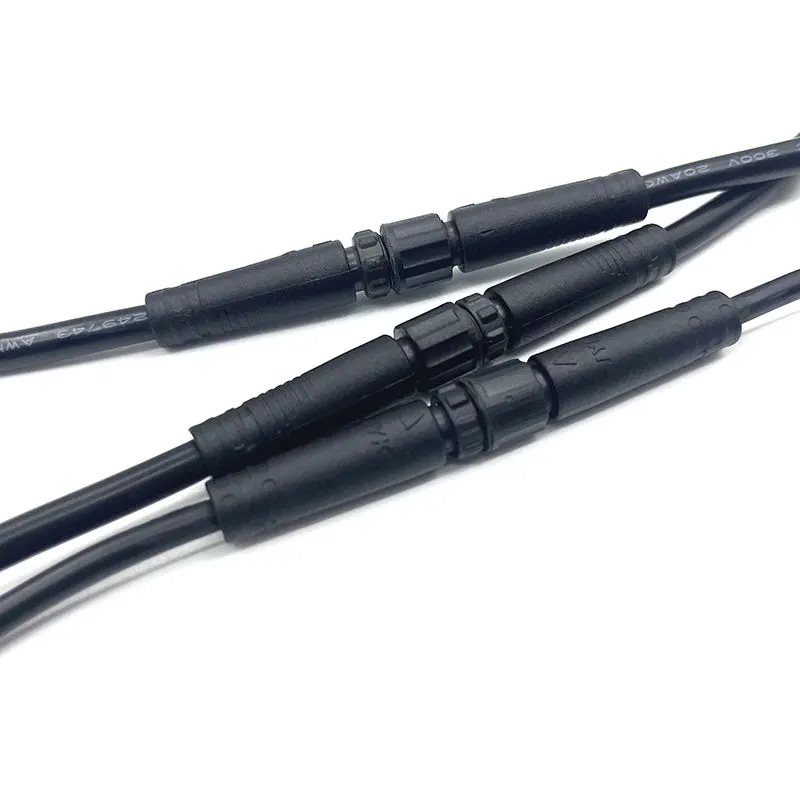

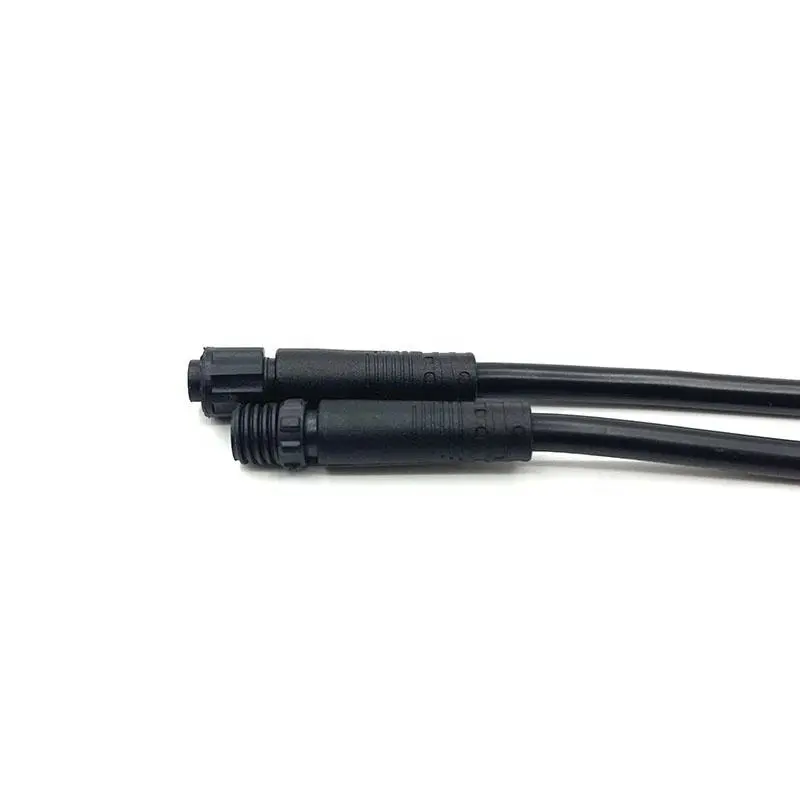

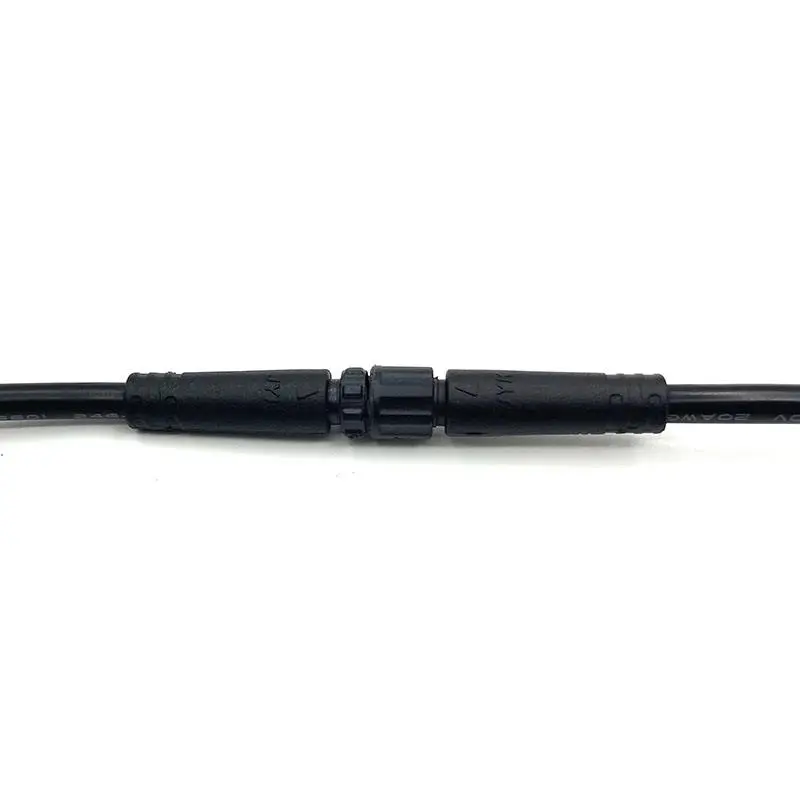

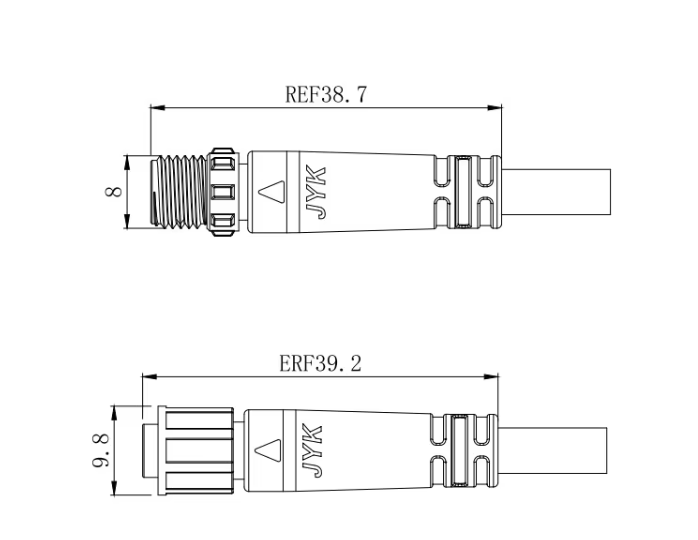

The M8 3-Pin LED Cable Connector is a compact, circular connector system comprising a male and a female counterpart. The M8 designation refers to the thread size (8mm), making it a space-efficient alternative to larger connectors without compromising on capability. This 3-pin configuration is ideally suited for DC power applications common in LED systems, typically carrying positive, negative, and ground or an auxiliary signal. The connector features a precision-machined metal or high-grade plastic coupling nut with a secure screw-locking mechanism, guaranteeing a vibration-proof connection. Integrated rubber seals and advanced gland technology provide an excellent IP67 or higher rating, meaning it is entirely protected against dust and can withstand temporary immersion in water. The cable is constructed with finely stranded, tinned copper conductors for optimal flexibility and corrosion resistance, jacketed in durable PVC or PUR that resists oil, abrasion, and weathering.

Product Features

Precision Engineering: The 3-pin layout is optimized for DC power, ensuring correct and safe polarity for LED applications.

Rugged Build Quality: Constructed from engineering-grade materials that resist impact, UV radiation, and chemicals commonly found in industrial settings.

Superior Sealing Performance: Achieves an IP67 protection level, making it dust-tight and capable of withstanding immersion in water up to 1 meter for 30 minutes.

Vibration-Resistant Locking: The screw-thread locking mechanism prevents accidental loosening, even in high-vibration environments like automotive manufacturing or on heavy machinery.

Wide Temperature Tolerance: Operates reliably within a broad temperature range (e.g., -25°C to +85°C), ensuring performance in both freezing and hot conditions.

Flexible & Durable Cable: The accompanying cable features oil-resistant and flexible jacket material, allowing for easy installation in tight spaces and prolonged use without cracking.

Product Advantages

Why Choose Our M8 3-Pin Connector Over Generic Alternatives?

Enhanced System Reliability: The primary advantage is the drastic reduction in connection failure. The robust waterproof and dust-proof design eliminates common issues like short circuits and corrosion, which are frequent causes of LED system failure.

Simplified Installation and Maintenance: The plug-and-play design drastically reduces wiring time during installation. For maintenance, individual components can be quickly replaced without rewiring entire sections, saving on labor costs.

Unmatched Safety: The secure locking mechanism and polarized pins (to prevent incorrect mating) are critical safety features. They prevent accidental disconnection and potential arcing, protecting both your equipment and personnel.

Long-Term Cost Efficiency: While the initial investment might be slightly higher than non-weatherproof connectors, the long-term savings are substantial. You will experience fewer replacements, lower maintenance interventions, and less system downtime, leading to a superior return on investment.

Application Versatility: This single Connector solution can be deployed across a wide range of applications, from outdoor LED lighting and signage to factory automation controls, streamlining your inventory and procurement process.

Product Application Fields

The versatility and durability of our M8 3-pin cable connector make it an ideal choice for a multitude of industries and applications:

Outdoor & Architectural LED Lighting: Perfect for connecting LED street lights, floodlights, garden lights, and architectural facade lighting where exposure to the elements is constant.

LED Display Screens: Used for both power transmission and data signal connections between modules in large outdoor and indoor LED video walls.

Industrial Automation & Machinery: Provides reliable power connections for sensors, actuators, and control panels on assembly lines, robotic arms, and packaging equipment.

Automotive Electronics: Suitable for low-voltage power supply connections in automotive testing equipment, assembly jigs, and internal lighting systems.

New Energy Systems: Utilized in connecting low-voltage components within solar power monitoring systems and battery storage units.

Product Frequently Asked Questions (FQA)

Q1: What is the IP rating of this connector, and what does it mean?
A: This M8 Connector is rated IP67. This means it is completely dust-tight (6) and can be submerged in water up to 1 meter deep for up to 30 minutes (7) without ingress, making it suitable for outdoor and damp environments.

Q2: What is the typical voltage and current rating for this 3-pin version?
A: This connector is typically rated for low-voltage DC applications, commonly up to 24-48V DC and a current of 4A per pin, which is standard for most LED power systems. Always check the specific product datasheet for precise ratings.

Q3: Can I use this connector with different cable sizes?
A: Yes. Our connectors are designed to accommodate a range of standard cable outer diameters (e.g., 4mm to 6mm). The integrated cable gland is adjustable, providing a tight and secure seal for various cable sizes.

Q4: Is the mating between male and female connectors color-coded or keyed?
A: Yes, the connectors are often designed with a keyed housing or color-coding to ensure proper alignment and prevent incorrect mating, which could damage the pins or cause a short circuit.

Q5: How do I assemble this connector to the cable?
A: Assembly is straightforward. It typically involves stripping the cable, inserting the conductors into the designated pin slots (often using a simple screw-clamp mechanism), and then assembling the housing and tightening the locking nut. No special crimping tools are required.
