Product Description

The M20 Solder-Free Waterproof Aviation Connector represents the next generation of industrial connectivity solutions, specifically designed for aerospace-grade applications requiring maximum reliability and ease of installation. This connector eliminates traditional soldering requirements through innovative spring-cage termination technology, significantly reducing installation time while ensuring consistent electrical performance. With an IP68 protection rating and military-grade construction, it provides exceptional resistance to extreme environmental conditions including vibration, shock, moisture, and temperature fluctuations. The corrosion-resistant stainless steel coupling mechanism and high-temperature engineering thermoplastic housing make it ideal for critical applications where failure is not an option.

Product parameters

Product Model :JYK-M20

Number of cores: 2/3/4-pin

Shell material :PA66

Rated voltage :400V

Rated current :24A

Waterproof rating :IP68

Operating temperature :-40℃ to +105 ℃

Wire matching :0.5mm²-2.5mm²

Outer line diameter :5mm-9.0mm, 9.0-12mm

Product Advantages
Installation Efficiency
The solder-free design reduces installation time by 70% compared to traditional aviation connectors. The spring-cage termination system accommodates wire sizes from 24-12 AWG without requiring stripping precision, eliminating connection errors and ensuring consistent performance.

Enhanced Reliability
Military-grade construction and IP68 rating provide unparalleled protection against environmental factors. The stainless steel coupling mechanism maintains torque integrity even after 500+ mating cycles, ensuring permanent connection security in high-vibration environments.

Maintenance Reduction
The self-cleaning contacts and corrosion-resistant materials minimize maintenance requirements. The sealed design prevents moisture ingress and chemical corrosion, significantly extending service life in harsh conditions.

Cost Effectiveness
Reduced installation time and elimination of specialized soldering equipment lower overall project costs. The durable construction decreases replacement frequency, providing excellent long-term value for critical applications.

Safety Compliance
Meets international safety standards including UL, CSA, and CE certifications. The double-insulated design and finger-safe contact chambers enhance operator safety during installation and maintenance.

Application Fields

• Aerospace and aviation equipment

• Military and defense systems

• Marine and offshore applications

• Railway and transportation systems

• Industrial robotics and automation

• Energy and power generation

• Medical equipment

• Telecommunications infrastructure

Frequently Asked Questions (FAQ)

Q1: How does the solder-free termination work?
A: The spring-cage mechanism uses a simple push-in design where wires are inserted directly into the contact chamber. A built spring clamp securely holds the wire while maintaining constant pressure for reliable conductivity.

Q2: What is the IP68 rating duration?
A: The connector maintains waterproof integrity when submerged under 1.5 meters of water for up to 24 hours, making it suitable for permanent underwater applications.

Q3: Can existing wired connectors be converted to this system?
A: Yes, the connector is backward compatible with standard M20 threaded interfaces. Existing installations can be easily upgraded without system modifications.

Q4: What maintenance is required?
A: The connector requires minimal maintenance. Periodic visual inspection and cleaning of the mating surfaces are recommended in extreme environments.

Q5: Are special tools required for installation?
A: No special tools are needed. A standard screwdriver for the cable gland and a extraction tool for contact removal are included with each connector.

Q6: What wire types are compatible?
A: The termination system works with solid and stranded copper wires from 24-12 AWG. Both shielded and unshielded cables are supported.

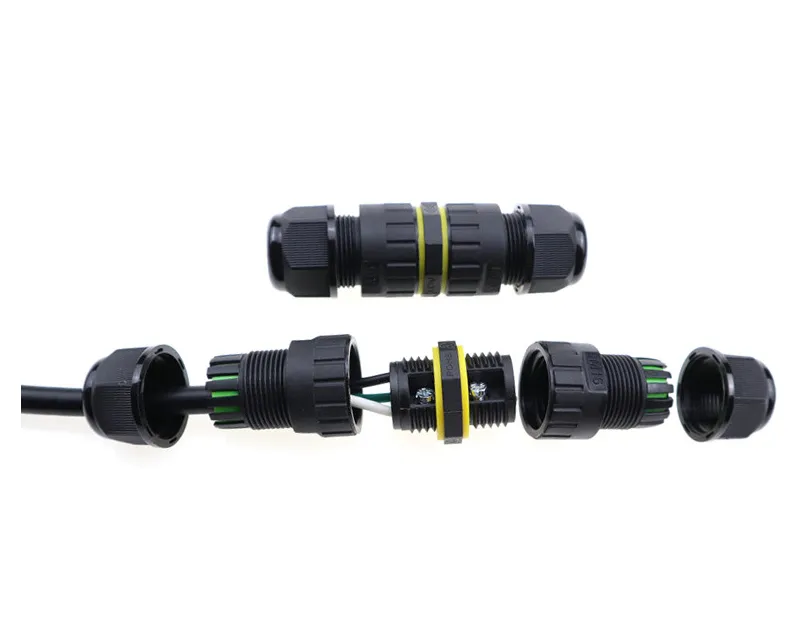

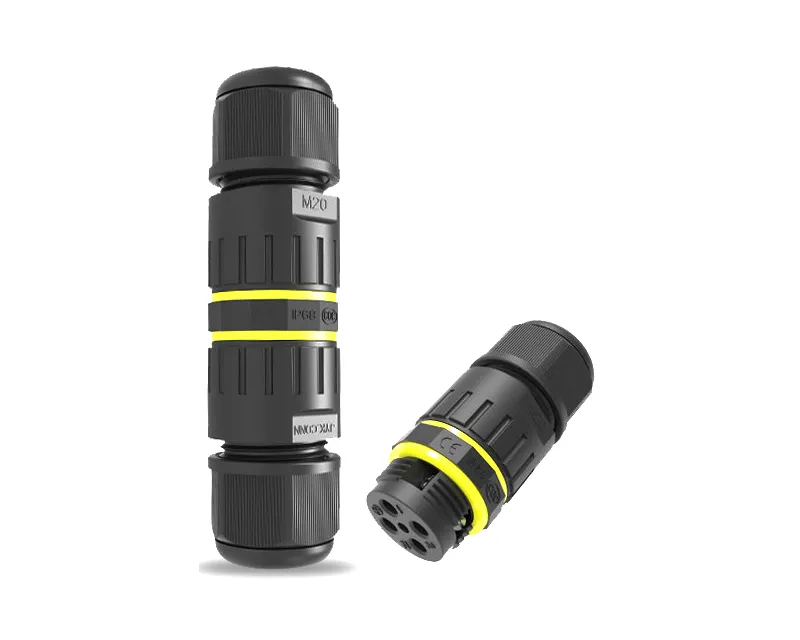

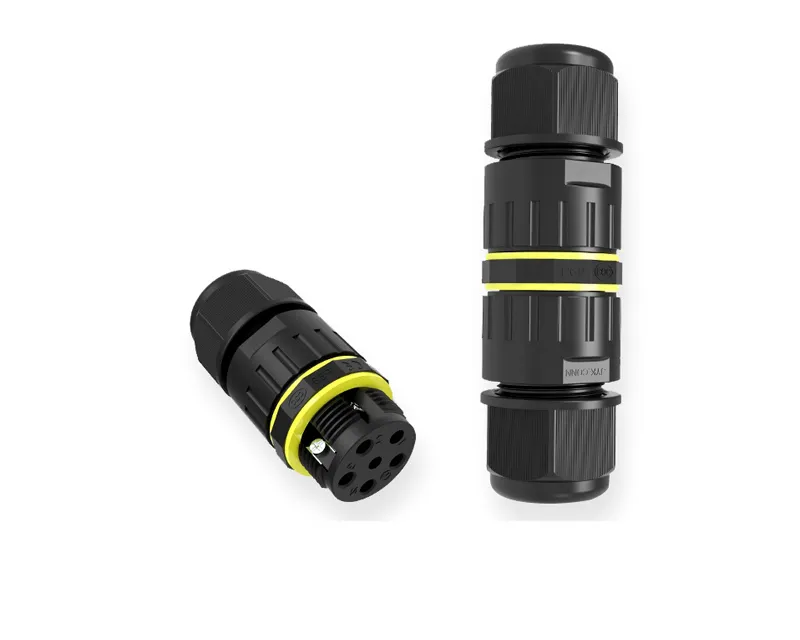

Display of waterproof plug
