Product Description
The M19 Molded Male Female Connector represents the next generation of waterproof connectivity solutions specifically engineered for professional outdoor lighting applications. As a premium offering from Shenzhen Jiayunkang Technology, this connector series combines advanced molding technology with superior weatherproofing capabilities to deliver unmatched reliability in harsh outdoor environments. The M19 features precision-molded construction that creates a seamless, waterproof barrier around cable entries, eliminating potential failure points and ensuring long-term performance in demanding conditions. With its robust design and IP68 protection rating, this connector is built to withstand extreme weather conditions, UV exposure, and temperature fluctuations, making it the ideal choice for landscape architects, lighting designers, and electrical contractors who require dependable connections for critical outdoor lighting installations.

The connector system includes color-coded male and female counterparts with intuitive push-lock mechanisms that ensure proper mating orientation and prevent incorrect connections. The molded design incorporates advanced strain relief technology that distributes mechanical stress along the cable length, significantly reducing the risk of wire breakage and connection failure. Engineered with marine-grade materials and corrosion-resistant contacts, the M19 connector maintains optimal electrical performance even in coastal environments with high salt content. The product's innovative design includes visual and tactile indicators that confirm secure mating, providing installers with immediate feedback that the connection is properly established and weatherproofed.

Product Features

• IP68 Waterproof Rating: Superior protection against prolonged immersion up to 1.5 meters for continuous underwater reliability

• Precision Molded Construction: Seamless integration between cable and connector body prevents moisture ingress

• 360° EMI Shielding: Comprehensive electromagnetic interference protection for stable signal transmission

• High-Temperature Resistance: Operating range from -40°C to +125°C ensures performance in extreme climates

• Quick-Secure Locking Mechanism: Audible click confirmation ensures proper mating without tools

• Corrosion-Resistant Materials: Stainless steel components and gold-plated contacts prevent degradation

• UV-Stabilized Housing: Special compound resists solar degradation and maintains flexibility

• Color-Coded System: Intuitive polarity identification reduces installation errors

• Integrated Strain Relief: Distributes mechanical stress and prevents cable pull-out

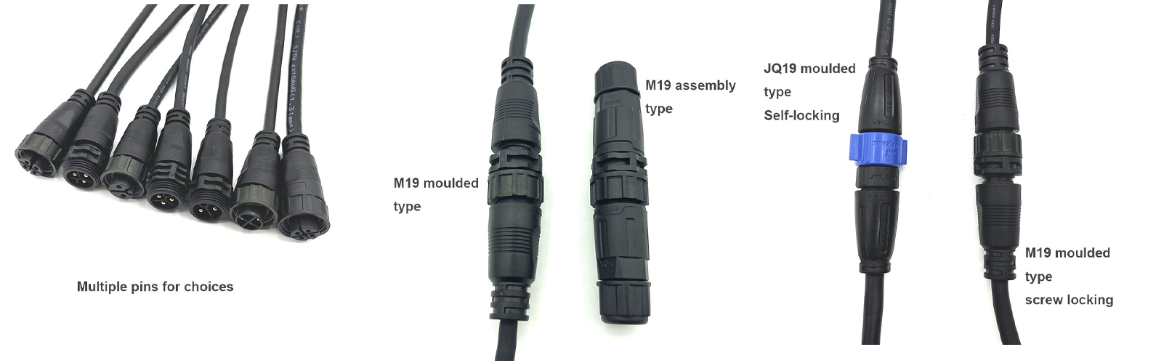

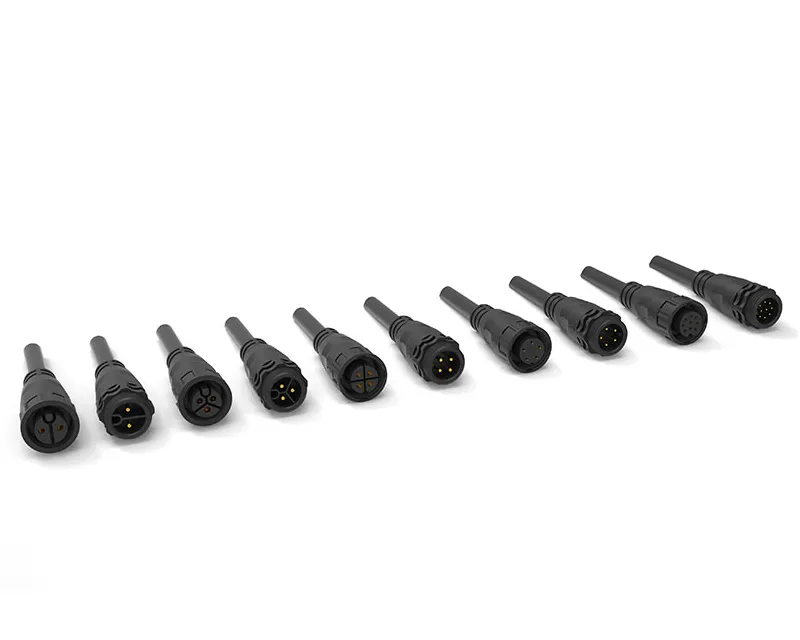

• Multiple Configuration Options: Available in 3-8 pin versions with various cable length options

Applications:

It is mainly used in LED display, automation equipment, stage lighting, outdoor lighting, landscape lighting and other industries.

• Professional landscape lighting systems

• Architectural facade illumination

• Park and recreational area lighting

• Street and roadway lighting fixtures

• Stadium and sports field lighting

• Marine and dock lighting installations

• Fountain and water feature lighting

• Outdoor security and surveillance systems

• Garden and pathway lighting solutions

• Solar-powered lighting applications

• Temporary event and festival lighting

• Industrial outdoor lighting systems

Features:

1. The most reliable and stable threaded connection mode, easy operating, strong foolproof, blind plugging;

2. Multi-core product structure satisfies the diversified industrial requirements;

3. The GND is in contact first, and the live wire & zero wire are in contact later, which is safer and more reliable;

4. Adopt high-performance copper alloyed cores, gold plating, to guarantee electrical performance;

5. Using high-performance thermoplastic material, which has high temperature resistance, UV resistance, fire resistance, flame retardant, explosion-proof and oil resistance;

6. Protection level up to IP67/IP68;

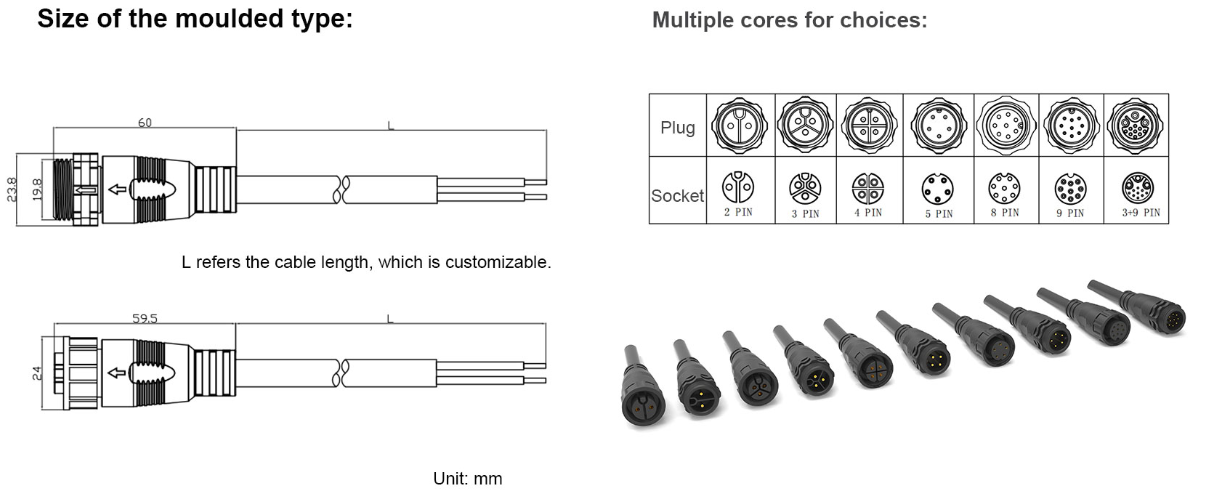

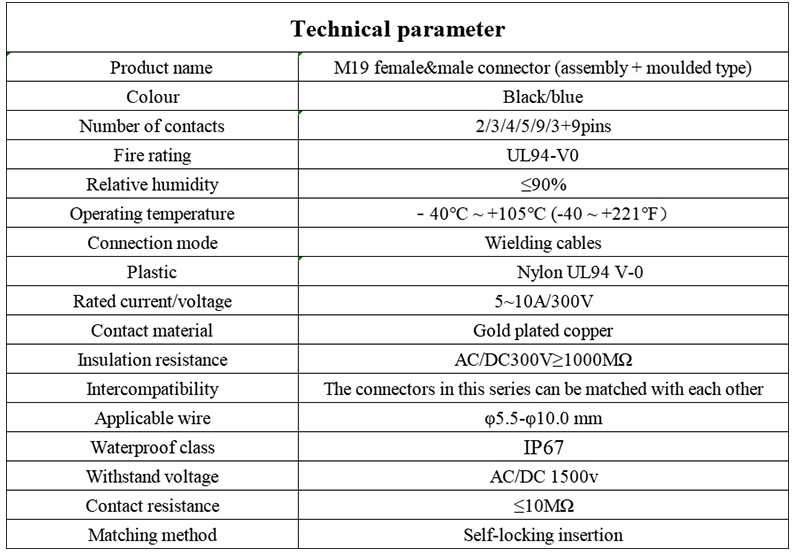

Parameters:

Frequently Asked Questions (FAQ)

Q1: What is the difference between IP67 and IP68 ratings for outdoor lighting applications?
A: While both provide excellent protection, IP68 offers superior performance for prolonged immersion scenarios. IP67 protects against temporary immersion (30 minutes at 1 meter), while IP68 provides protection against continuous immersion at greater depths (1.5 meters indefinitely), making it ideal for applications where connectors might be submerged for extended periods.

Q2: How does the molded construction improve reliability compared to assembled connectors?
A: The molded construction creates a seamless, waterproof seal around the cable entry point that cannot be compromised by vibration, temperature changes, or mechanical stress. This eliminates the most common failure point in outdoor connectors and ensures long-term reliability.

Q3: Can the M19 connector be used with existing M-type connector systems?
A: The M19 features a standardized sizing that maintains compatibility with industry-standard M-type connections while offering enhanced features and protection. However, we recommend using matched male-female pairs for optimal performance.

Q4: What maintenance is required for these connectors?
A: The M19 connector is designed for minimal maintenance. Periodic visual inspection and cleaning of the contact surfaces are recommended, especially in high-corrosion environments. The molded construction eliminates the need for re-tightening or seal replacement.

Q5: Are custom cable lengths and pin configurations available?
A: Yes, we offer complete customization services including specific cable lengths, wire gauges, pin configurations, and color options to meet your project requirements. Minimum order quantities apply for custom configurations.

Q6: How does the strain relief system work?
A: The integrated strain relief uses a graduated flexibility design that distributes mechanical stress along a controlled section of the cable, preventing sharp bends and concentration of stress at the connection point. This significantly reduces the risk of wire breakage from vibration or accidental pulling.

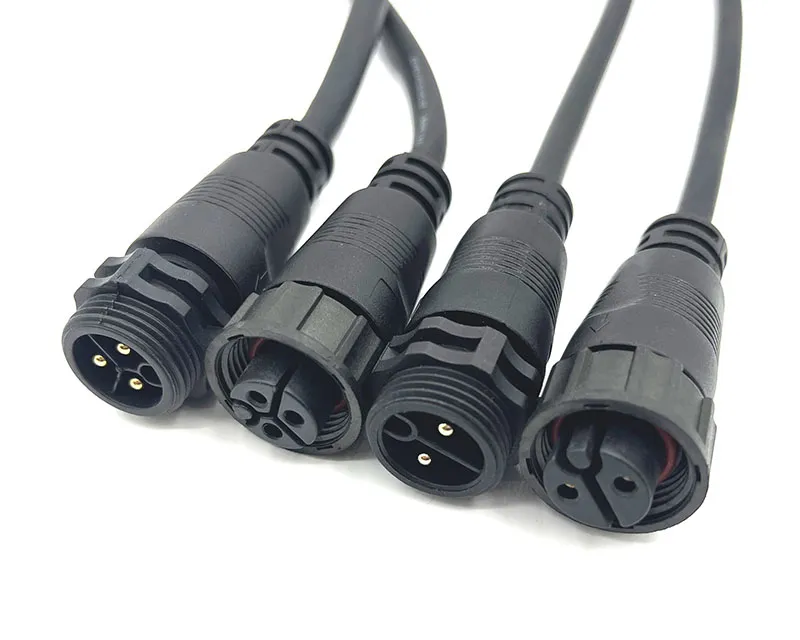

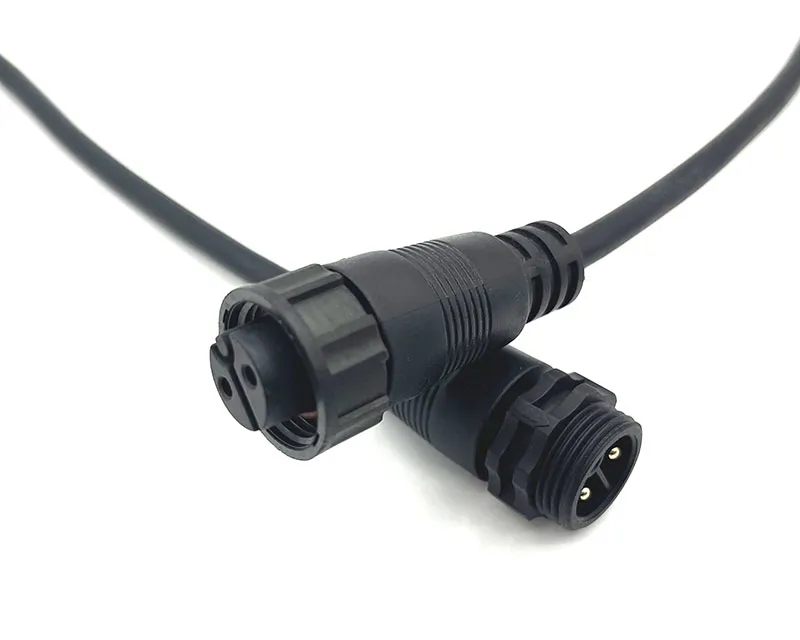

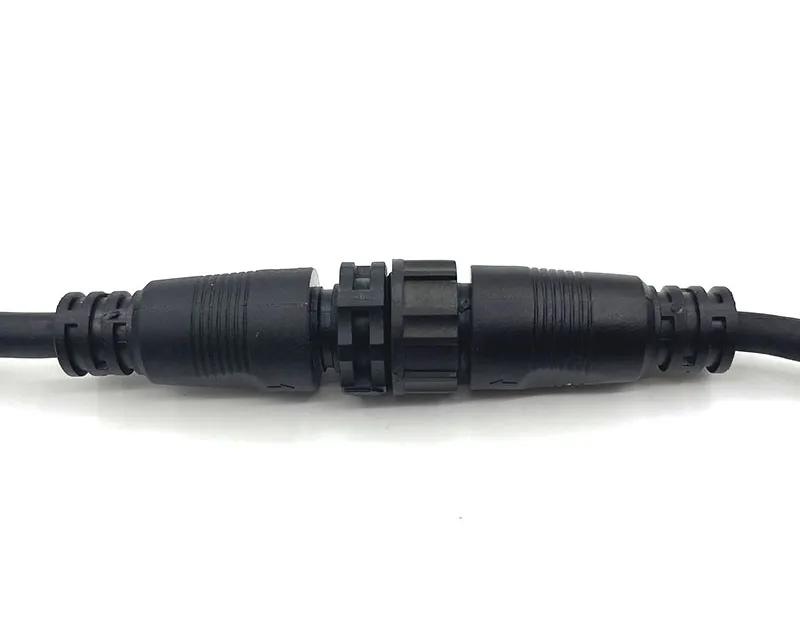

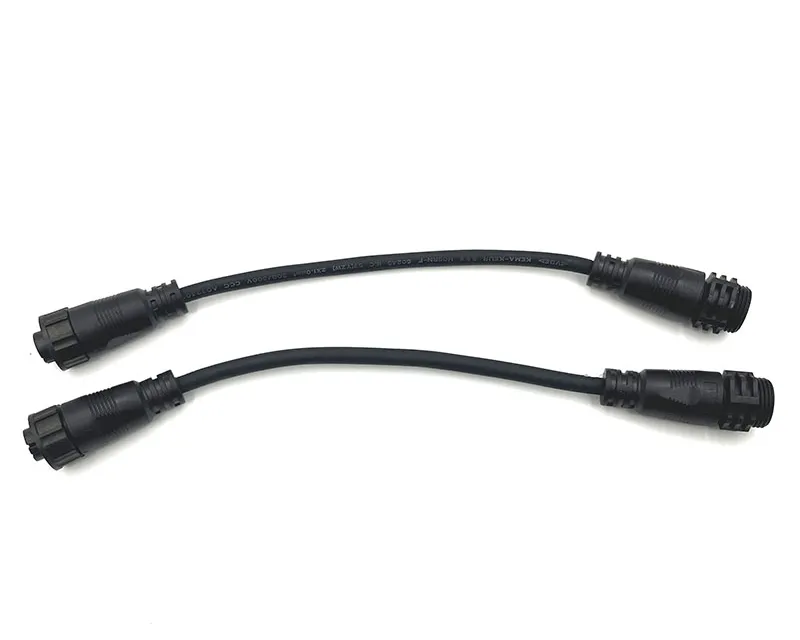

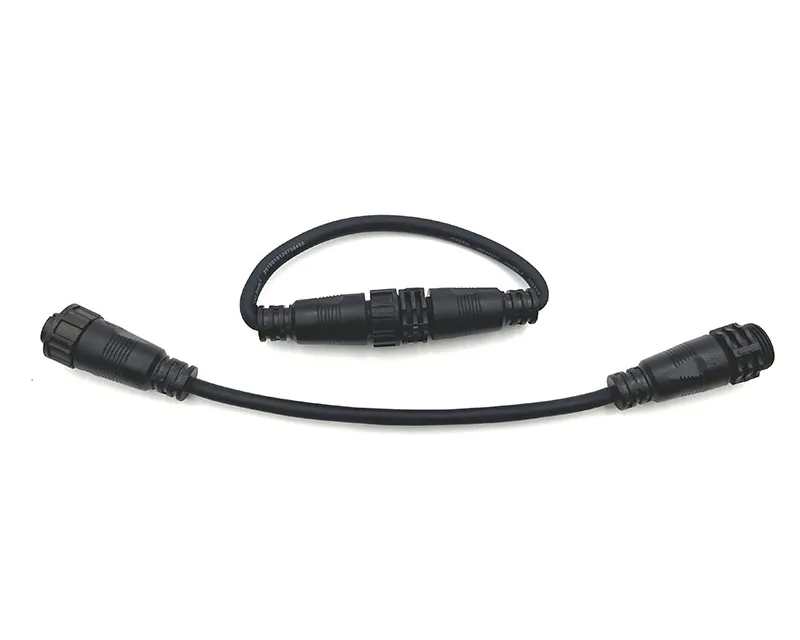

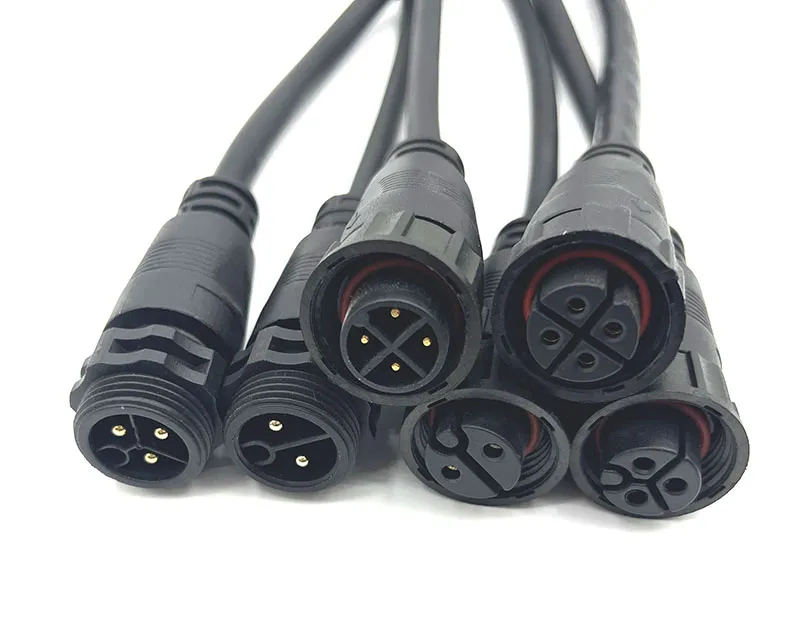

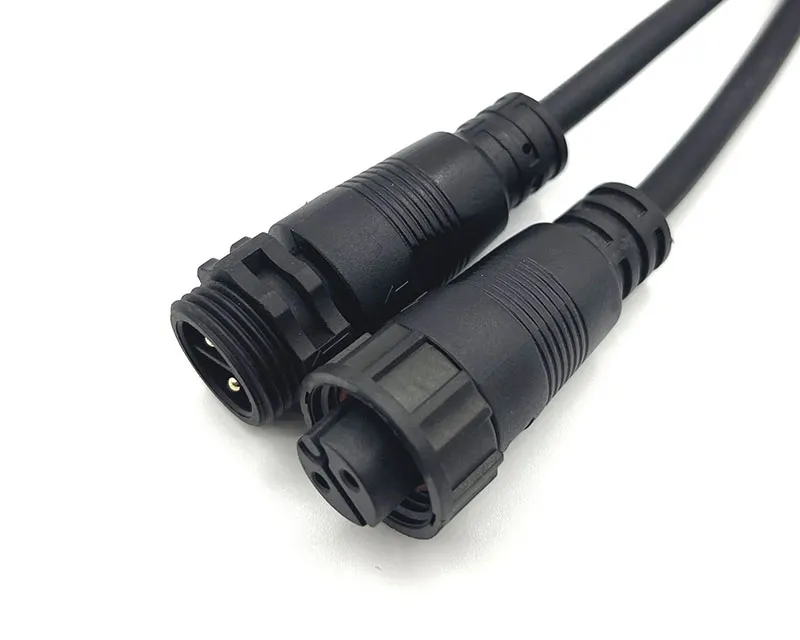

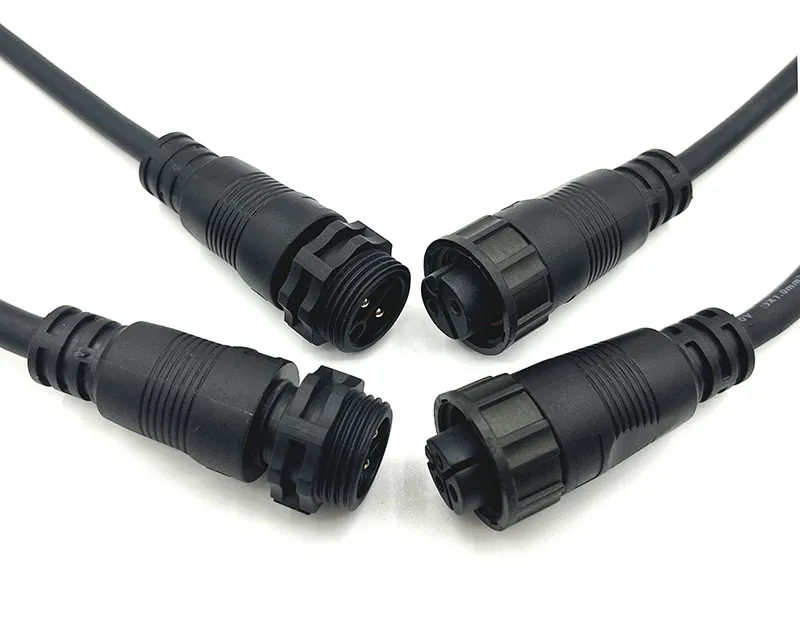

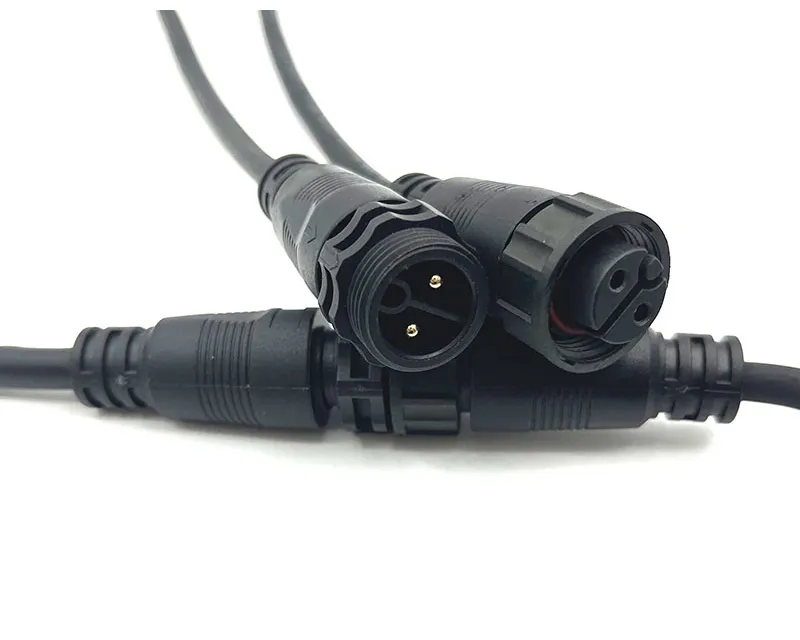

Details:
