Product Description

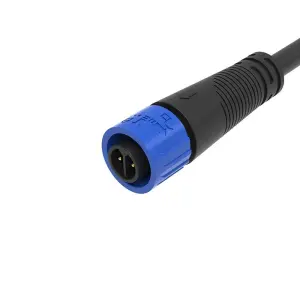

Shenzhen Jiayunkang Technology Co., Ltd. presents its industrial-grade M12 2-pin and 3-pin Cable connectors with an innovative automatic locking mechanism. Designed for efficiency and reliability, these connectors are the ideal solution for providing secure power and signal connections in automated systems, industrial machinery, and robust LED lighting. The M12 form factor, known for its compactness and durability, is enhanced with our automatic locking feature, which ensures a swift and secure mating process without the need for manual screw tightening. This design significantly reduces installation time and prevents accidental disconnections in high-vibration environments. Engineered with high-quality materials, these connectors offer excellent resistance to environmental challenges like dust, moisture, and oils, making them a superior choice for simplifying and securing your industrial connectivity.

Product Features

Automatic Locking Mechanism: Features a push-pull locking system that provides a secure, audible click upon connection, enabling quick mating and unmating without tools.

Standard M12 Coding: The 2-pin and 3-pin versions typically utilize A-coding, making them standard for power supply applications (up to 4A) in sensors and devices.

Robust Environmental Sealing: Rated at IP67 when mated, offering complete protection against dust ingress and temporary immersion in water up to 1 meter.

High-Quality Components: Features brass contacts with gold plating over nickel for low contact resistance and corrosion resistance, and PA (Nylon) housing for excellent mechanical strength and chemical resistance.

Wide Temperature Range: Operates reliably within a temperature range of -25°C to +85°C, suitable for most industrial environments.

Flexible Cable Options: Available with PVC or PUR cable jackets, providing choices for standard duty (PVC) or more demanding, oil-resistant applications (PUR).

Product Advantages

Drastic Reduction in Installation Time: The automatic locking system eliminates the time-consuming process of threading and tightening screw locks, streamlining the assembly of machinery and control panels.

Enhanced Connection Security in Vibratory Conditions: The positive lock is specifically designed to withstand constant vibrations, shocks, and pulls, which are common in automation equipment and production lines, preventing costly unplanned downtime.

Lower Total Cost of Ownership: By speeding up installation and minimizing connection-related failures, these connectors reduce labor costs and maintenance expenses over the system's lifetime.

Versatility Across Applications: The availability of both 2-pin and 3-pin configurations in a compact, standardized form factor allows for widespread use in powering sensors, actuators, LED modules, and small motors across various industries.

Proven Durability: The combination of robust materials and high IP rating ensures long-term reliability, even in harsh settings, reducing the frequency of replacements and ensuring consistent system performance.

Application Fields

The M12 2-pin and 3-pin Automatic Locking connectors are versatile components used in numerous sectors:

Industrial Automation: For powering sensors, photoelectric switches, proximity switches, and small actuators on robotic arms and conveyor systems.

Factory Automation & Control Panels: Providing quick-connect power interfaces within control cabinets and between machine modules.

Outdoor & Industrial LED Lighting: Ideal for connecting LED strips, industrial work lights, and signage where a secure, waterproof power connection is essential.

Packaging and Material Handling Machinery: Where vibration resistance and rapid maintenance are critical for operational efficiency.

Building Automation: Used in power and control systems for access control, HVAC units, and other building management devices.

Frequently Asked Questions (FAQ)

Q1: What is the key difference between this and a standard M12 screw-type connector?
A: The key difference is the locking mechanism. Our automatic locking type uses a push-pull, bayonet-style lock that engages with a simple push and disengages with a pull on the collar. This is much faster and tool-free compared to the threaded coupling nut of a standard M12 Connector.

Q2: Are these M12 Power connectors compatible with sensor connectors?
A: Yes, in terms of physical mating. The 2-pin and 3-pin A-coded connectors are standardized for power. They will physically mate with A-coded M12 sockets on devices. It is crucial to ensure the pin count and electrical rating (voltage/current) match the device's requirements.

Q3: What is the IP rating, and what does it mean?
A: These connectors are rated IP67 when properly mated. This means they are "Ingress Protection" 6 (completely dust-tight) and 7 (protected against the effects of temporary immersion in water between 15cm and 1 meter for up to 30 minutes).

Q4: Can I get these connectors with different cable lengths?
A: Yes. As a manufacturer, we typically offer standard cable lengths and can often provide custom lengths upon request to fit your specific application needs.
