Product Description

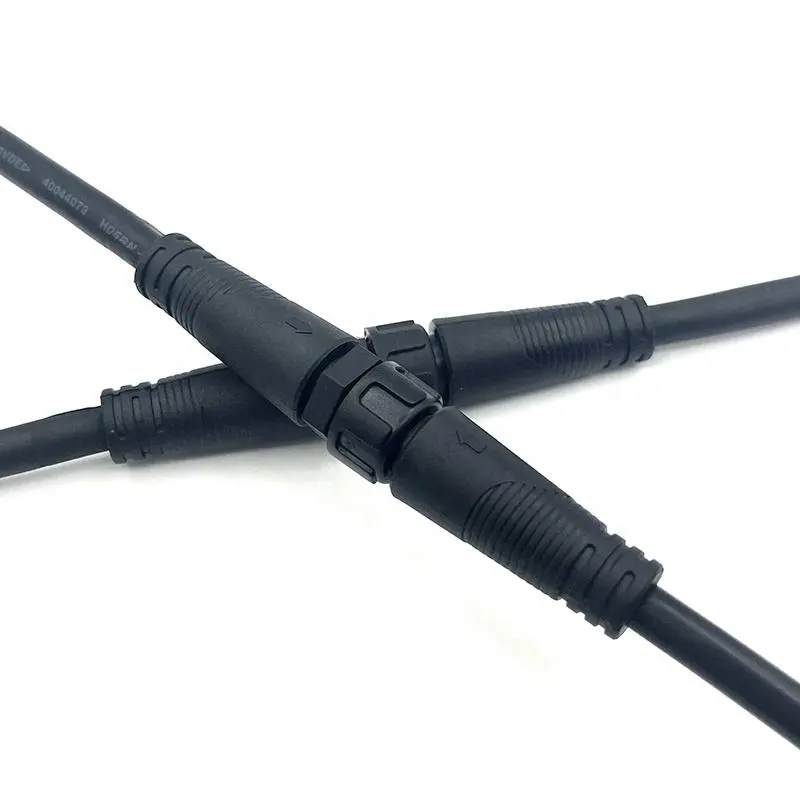

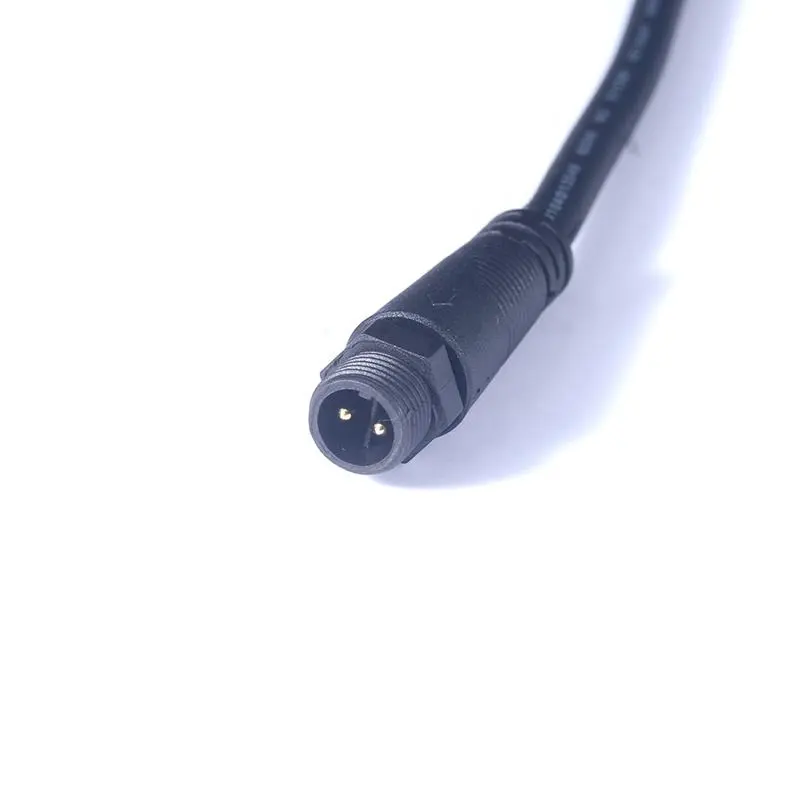

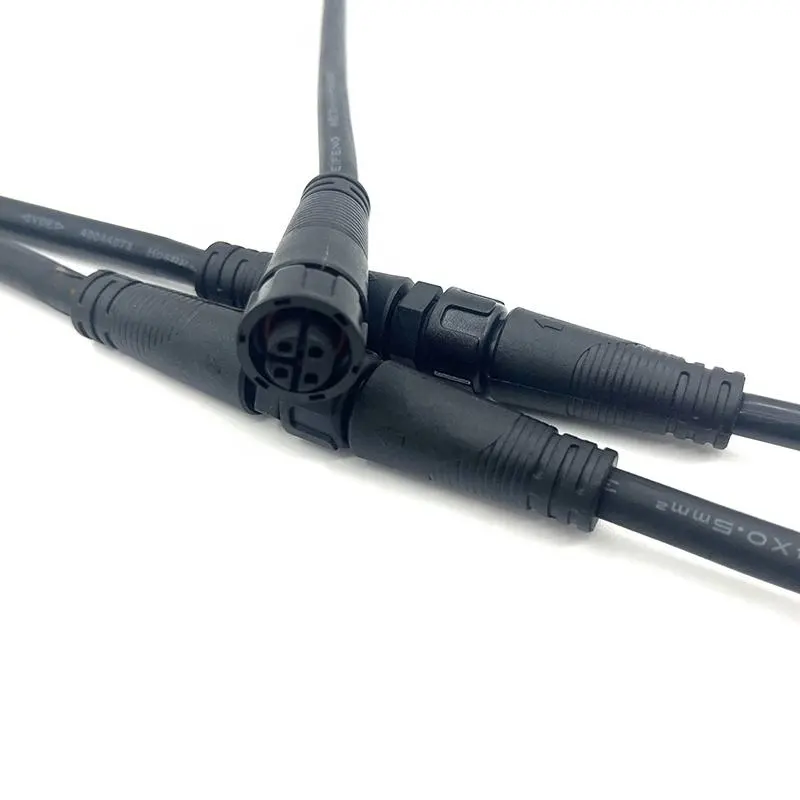

The M12 LED Lighting Connector is a high-performance, circular connectivity solution engineered specifically for the rigorous demands of modern LED lighting systems. Available in 2, 3, 4, and 5-pin configurations, this connector series provides unparalleled versatility for a wide array of power and signal transmission requirements. Designed with an IP67 rating, it guarantees complete protection against dust ingress and water immersion up to 1 meter, making it an ideal choice for both indoor and outdoor applications. Crafted from robust materials, our M12 Connectors ensure reliable performance in harsh environments, from industrial factories to outdoor public spaces. This product exemplifies Shenzhen Jiayunkang Technology Co., Ltd.'s commitment to delivering superior quality, durability, and innovation in the field of specialized Electrical Connectors.

Product Features

Multi-Pin Configurations: Offers 2, 3, 4, and 5-pin options to accommodate different wiring setups for power, ground, and control signals (e.g., dimming functions).

Superior IP67 Protection: Fully waterproof and dust-tight, ensuring reliable operation even when exposed to rain, moisture, or high-pressure washdowns.

Robust Construction: Features a metal or high-grade PBT plastic shell with superior resistance to impact, corrosion, and UV radiation, ensuring long-term durability.

Secure Locking Mechanism: The patented 3/4-turn bayonet locking system provides a vibration-proof connection, preventing accidental disconnection.

Excellent Electrical Properties: High-quality copper contacts ensure low contact resistance and stable current carrying capacity, minimizing voltage drop and power loss.

Wide Temperature Tolerance: Operates effectively within a broad temperature range, typically from -25°C to +85°C, suitable for various climatic conditions.

Easy Installation: Tool-less assembly design with clear coding prevents mismating and simplifies field installation and maintenance.

Product Advantages

Choosing our M12 LED connector provides tangible benefits that enhance your lighting system's overall value and reliability.

Maximized System Uptime: The exceptional sealing and rugged build quality drastically reduce failure rates caused by environmental factors, leading to lower maintenance costs and less downtime.

Unmatched Application Flexibility: With multiple pin-counts and a standardized M12 form factor, this single connector family can be used across your entire product line, from simple street lights to complex programmable RGB fixtures, simplifying inventory and design.

Future-Proof Design: The availability of up to 5 pins supports advanced lighting control protocols like DALI or PWM dimming, allowing for the integration of smart, energy-efficient lighting systems without requiring a connector redesign.

Streamlined Global Sourcing: As a leading manufacturer, we guarantee consistent quality, competitive pricing, and reliable supply, making us a trusted partner for global buyers seeking a one-stop solution for LED connectivity.

Application Fields

The M12 LED Lighting Connector is indispensable in any application where reliability meets environmental challenge.

Outdoor & Architectural Lighting: LED Street Lights, Floodlights, Landscape Lighting, Facade Illumination, Park and Pathway Lighting.

Industrial Automation: Factory High-Bay Lighting, Machinery Workstation Lights, Warehouse LED Lighting Systems, Assembly Line Illumination.

Commercial & Public Infrastructure: Sports Stadium Lighting, Airport Hangar Lights, Parking Garage Lighting, Shopping Mall Lighting.

Specialty & Harsh Environment Lighting: Marine Deck Lighting, Agricultural Vehicle Lights, Mining Equipment Lighting, Cold Storage Lighting.

Digital Signage & Display: Large Format LED Display Screens and Digital Billboards requiring secure power and data connections.

Product FQA

Q1: What is the difference between the 2-pin, 3-pin, and 4-pin versions?
A1: The 2-pin version is typically used for basic power connection (Live and Neutral). The 3-pin adds a dedicated Earth/Ground pin for enhanced safety. The 4-pin and 5-pin versions are designed for LED fixtures that require separate power and control signals, such as for dimming (0-10V/PWM) or color-changing (RGB) functions.

Q2: Is the IP67 rating sufficient for permanent underwater use?
A2: No. An IP67 rating certifies protection against temporary immersion (up to 30 minutes at 1 meter depth). It is perfect for outdoor weather, rain, and splash exposure. For permanent submersion, a connector with a higher IP68 or IP69K rating would be required.

Q3: Are these connectors compatible with other standard M12 connectors on the market?
A3: Yes, our M12 LED Connectors adhere to the standard M12 form factor and threading, ensuring mechanical compatibility with other standard M12 components. However, for optimal electrical performance and sealing integrity, we recommend using matched cable assembly sets from a single supplier.

Q4: Can I purchase these as pre-assembled cable sets?
A4: Absolutely. We specialize in providing both individual connectors for your assembly lines and custom-length, pre-wired, and pre-assembled cable harnesses, ready for immediate installation, which can significantly reduce your production time and labor costs.
