Junction Box Used for LED Lighting

This junction box demonstrates exceptional technical advantages through its innovative design. The transparent cover not only facilitates quick visual status checks but also reduces maintenance time by 40% compared to traditional opaque boxes. The pre-installed terminal blocks with screw clamp connections ensure secure wire retention with torque up to 0.6 N·m, preventing loose connections in high-vibration environments. The cable glands feature dual sealing rings made of silicone rubber, providing double protection against moisture penetration. The internal compartment is designed with cab...

Inquiry

E-mail：sales01@szjiayunkang.com

WhatsApp：+86 13378428166

Detailed Description

Product Description
The IP67 Rated Junction Box for LED Lighting Systems is a premium-grade electrical enclosure specifically engineered for outdoor and industrial LED applications. Designed by Shenzhen Jiayunkang Technology, this junction box provides a completely sealed environment for electrical connections, ensuring reliable performance in challenging environmental conditions. The box features high-quality engineering plastics with UV stabilization, making it ideal for prolonged outdoor exposure. With its transparent cover design and easy-access terminal blocks, this junction box simplifies installation and maintenance while providing superior protection against water, dust, and corrosion. The innovative design includes pre-installed mounting points and cable entry options, making it the perfect solution for professional LED lighting installations.

Advanced Protection Features

IP67 Waterproof Rating: Complete protection against dust ingress and temporary water immersion up to 1 meter depth
UV-Resistant Housing: Engineering-grade polycarbonate material withstands prolonged sun exposure without degradation
Transparent Cover: Allows visual inspection of connections without opening the enclosure
Multiple Cable Entries: Pre-molded openings with sealed glands accommodate 4-8 cables (PG7, PG9, PG11 sizes)
High-Temperature Resistance: Stable performance from -40°C to +125°C
Corrosion-Resistant: Stainless steel screws and brackets ensure long-term reliability
Internal Terminal Blocks: Pre-installed connectors support quick and secure wire connections
Mounting Flexibility: Multiple mounting options including wall mount, pole mount, and surface mount

Applications:

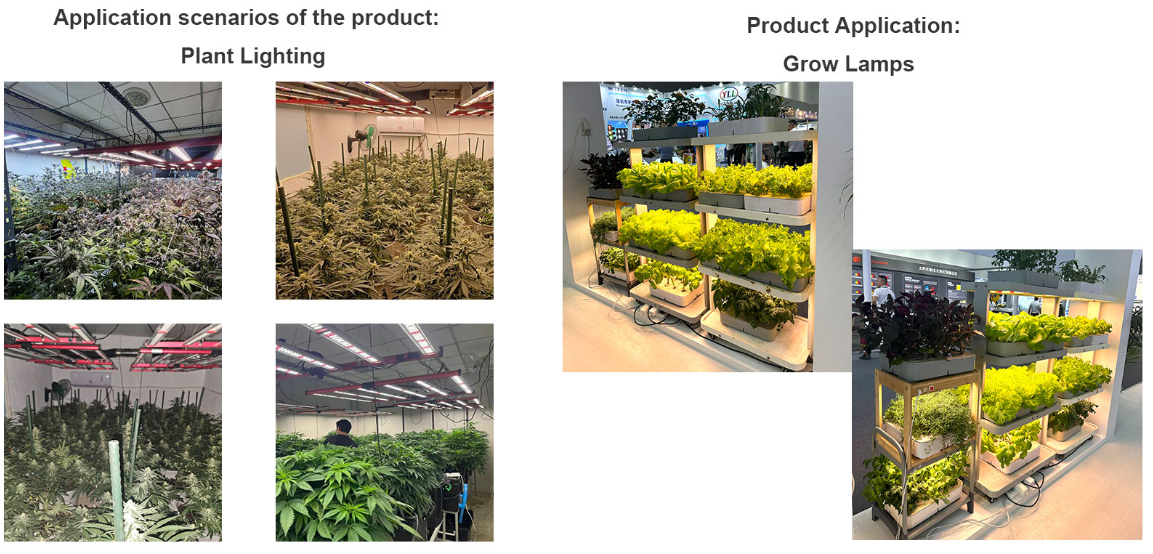

LED industry, smart lighting, plant lighting, LED wash wall lamps, street lights, underground lamp, stage lighting and other fields.

Outdoor LED street lighting systems
Landscape and garden lighting installations
Parking lot and area lighting fixtures
Architectural and facade lighting projects
Industrial LED high-bay lighting
Tunnel and underground lighting systems
Sports field and stadium lighting
Marine and waterfront lighting applications
Solar-powered LED lighting setups
Smart city infrastructure projects

Features:

1. Simplify the client-side production process;

2. The junction box is directly connected to the PCB inside the lamps instead of extra wire;

3. The external waterproof structure has stronger protection;

4. Easy to operate and maintain.

Parameters:

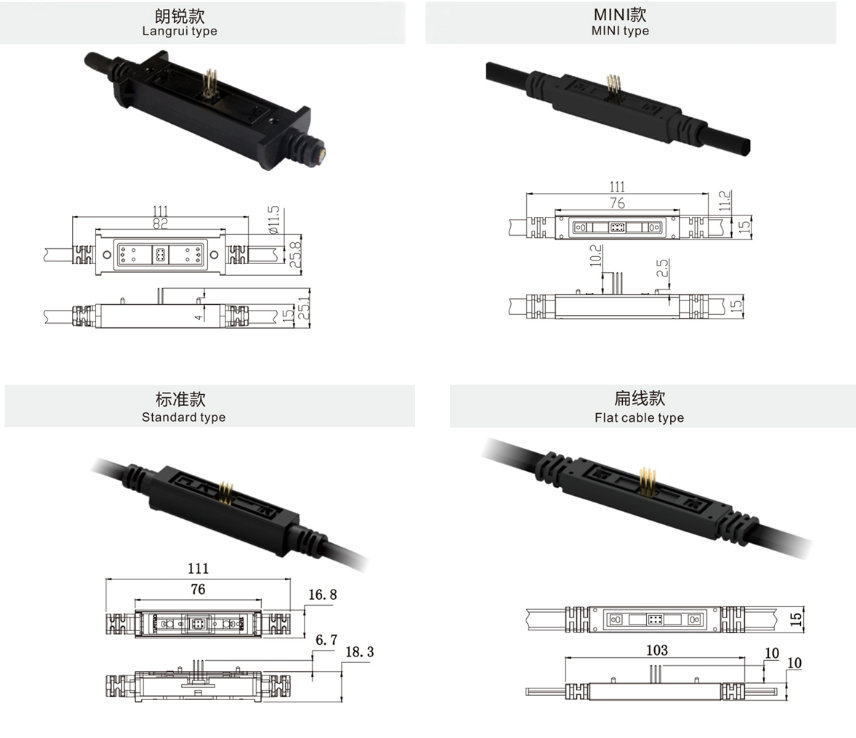

Product size type:	Langrui type	Mini type	Standard type	Flat line type
Part number:	JYK-FXH-L	JYK-FXH-M	JYK-FXH-S	JYK-FXH-F
Workable wire:	0.5 ~ 1.5mm²	0.5 ~ 1.5mm²	0.5 ~ 1.5mm²	0.25 ~ 1.0mm²
Wire gauge:	OD≤Φ8.0mm	OD≤Φ8.0mm	OD≤Φ8.0mm	≤Φ4*10mm
Protection level:	IP67/68
Operating temperature:	-40℃ ~ +105℃
Shell material:	PA
Cable shethed:	PVC/Rubber/PUR
