Product Description

The Circular Metal Thread Type Connector represents the pinnacle of reliability in industrial connectivity solutions. Engineered with a precision-machined metal threaded coupling system, this connector series delivers exceptional performance in the most demanding environments. The robust brass or stainless steel threading ensures secure mating that withstands extreme vibration, mechanical stress, and frequent mating cycles. Featuring IP68/IP69K protection ratings, these connectors provide complete immunity against moisture, dust, high-pressure washdowns, and chemical exposure. The advanced shielding technology guarantees electromagnetic compatibility, making them ideal for critical signal transmission applications where connection integrity cannot be compromised.

Product parameters

Product Model :M8

Number of cores :3/4/6/8 pins

Shell material: Nylon

Rated voltage :30-60V

Rated current :1.5-4A

Waterproof rating :IP67/68

Operating temperature :-40℃±85℃

Wire diameter range :OD≤ medium 5mm

Connection method: M8 thread locking

Product Features

• Military-Grade Threading: Precision-cut metal threads with anti-cross-threading design

• Environmental Sealing: IP68/IP69K rated for complete environmental protection

• EMI/RFI Shielding: 360° shielding effectiveness exceeding 100dB

• Extended Temperature Range: -55°C to +125°C operational capability

• Corrosion Resistance: Passivated stainless steel or brass with protective plating

• Multiple Contact Configurations: 3 to 12-pin options with gold-plated contacts

• Strain Relief System: Double-layer strain relief for cable protection

• Visual Connection Verification: Color-coded coupling indicators

• Tool-Less Assembly: Field-installable without special tools

Product Advantages
Unmatched Reliability
The metal-to-metal threading system provides superior mechanical stability, maintaining perfect alignment and contact pressure even under extreme vibration and shock conditions. This ensures consistent electrical performance throughout the connector's lifespan.

Environmental Resilience
With IP68 submersion protection (2 meters, 24 hours) and IP69K high-pressure steam cleaning resistance, these connectors outperform standard Industrial Connectors in harsh processing environments.

Enhanced Safety
The threaded coupling mechanism prevents accidental disconnection, while the corrosion-resistant materials ensure long-term electrical safety in chemically aggressive environments.

Installation Efficiency
The tool-less assembly design reduces installation time by 40% compared to traditional Threaded Connectors, with visual indicators ensuring proper mating without guesswork.

Maintenance Optimization
The self-cleaning thread design and durable construction significantly reduce maintenance requirements, while the field-repairable design minimizes downtime when service is needed.

Application Fields

• Heavy industrial machinery and equipment

• Marine and offshore applications

• Military and defense systems

• Oil and gas exploration equipment

• Railway and transportation systems

• Mining and construction machinery

• Agricultural and forestry equipment

• Outdoor telecommunications infrastructure

Frequently Asked Questions (FAQ)

Q1: What is the difference between IP68 and IP69K ratings?
A: IP68 provides protection against continuous submersion (2 meters for 24 hours), while IP69K adds protection against high-pressure, high-temperature steam cleaning procedures.

Q2: Can these connectors be used in explosive environments?
A: While the connectors feature robust construction, specific certifications may be required for explosive environments. Please consult our technical team for application-specific guidance.

Q3: What is the expected mating cycle life?
A: The connectors are rated for a minimum of 500 mating cycles while maintaining all environmental and electrical specifications.

Q4: Are different thread sizes available?
A: Yes, we offer standard metric and unified thread patterns ranging from M8 to M24 sizes to meet various application requirements.

Q5: How is cable strain relief achieved?
A: The connector features a dual-layer strain relief system with compression gland and internal cable grip that distributes mechanical stress away from electrical contacts.

Q6: Can existing cables be retrofitted with these connectors?
A: Yes, the field-installable design allows for easy retrofitting of existing cables without special tools or training.

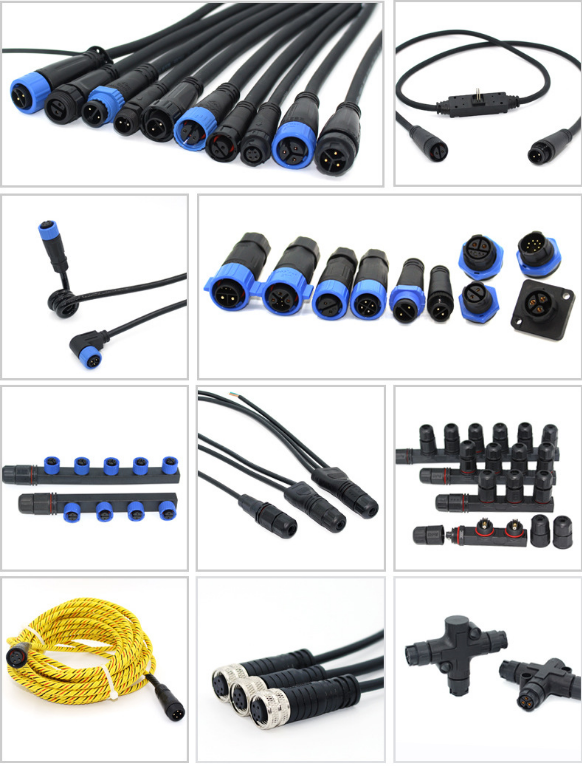

Display of waterproof plug
