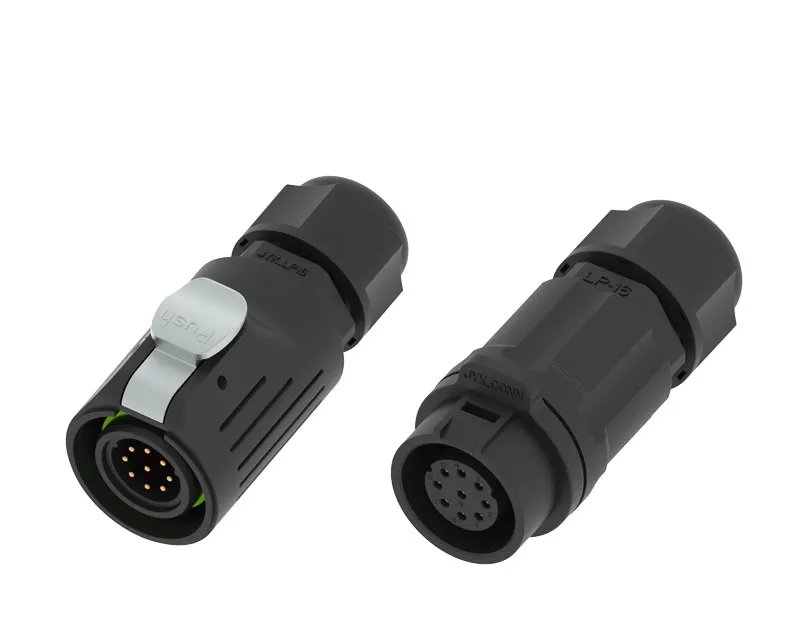

Product Description:

The LP16 Energy Storage Connector is a high-performance, robust electrical connection solution engineered specifically for the demanding environments of modern energy storage systems (ESS), including commercial & industrial ESS, battery energy storage systems (BESS), and photovoltaic installations. Developed by Shenzhen Jiayunkang Technology, a leading high-quality Waterproof Connector Manufacturer, this connector series embodies our commitment to reliability, safety, and innovation in the renewable energy sector.

Built to withstand harsh conditions, the LP16 features an IP67-rated waterproof seal, ensuring complete protection against dust and water immersion. Its high-current carrying capacity and ultra-low contact resistance make it an ideal choice for managing the high-power flows between battery racks, inverters, and PCS (Power Conversion Systems). The connector is designed for quick and secure mating with a distinct audible click, reducing installation time and minimizing the risk of human error. Engineered with premium materials like high-temperature resistant plastics and precision-machined copper alloy contacts, the LP16 connector guarantees long-term durability and stable performance, making it a critical component for ensuring the safety and efficiency of your energy infrastructure.

Product Features

• IP67 Waterproof Protection: Fully sealed against dust and water, making it suitable for outdoor and challenging environments.

• High Current Capacity: Capable of handling up to 100A+ current, ideal for high-power energy storage applications.

• Low Contact Resistance: Precision-machined contacts minimize energy loss and heat generation.

• Quick-Lock Coupling Mechanism: Push-pull design with audible confirmation ensures secure and vibration-resistant connections.

• High-Temperature Resistance: Engineered to perform reliably in extreme temperatures, typically from -40°C to +125°C.

• Polarized Design: Prevents misalignment and incorrect mating, enhancing operational safety.

• Robust Construction: Made from engineering-grade thermoplastics and corrosion-resistant metal components for extended durability.

Product Advantages
The LP16 connector offers distinct advantages for energy storage system integrators and manufacturers. Its IP67 rating ensures unparalleled reliability in humid or dusty conditions, significantly reducing maintenance needs and downtime. The combination of high current capacity and low contact resistance optimizes energy efficiency, which is critical for large-scale ESS and BESS applications. The quick-lock mechanism not only accelerates installation but also eliminates connection errors, a vital feature for ensuring system safety and reducing labor costs. Furthermore, its rugged design and high-temperature tolerance make it adaptable to diverse climates and industrial settings, providing a future-proof solution for evolving energy storage requirements.

Application Fields
The LP16 connector is versatile and critical for a wide range of applications within the new energy sector:

• Battery Energy Storage Systems (BESS)

• Solar and Photovoltaic (PV) installations

• Uninterruptible Power Supplies (UPS) for data centers

• Electric Vehicle (EV) charging infrastructure

• Industrial automation and machinery power connections

• Telecommunications power backup systems

• Outdoor and off-grid renewable energy setups

Frequently Asked Questions (FAQ)

Q1: What is the IP rating of the LP16 connector, and what does it mean?
A: The LP16 carries an IP67 rating, which means it is completely protected against dust ingress and can withstand temporary immersion in water up to 1 meter deep for 30 minutes.

Q2: Can the LP16 connector be used in outdoor solar applications?
A: Absolutely. Its IP67 waterproof rating and UV-resistant housing make it well-suited for outdoor use, including solar farms and rooftop PV systems.

Q3: What current and voltage ratings does the LP16 support?
A: The LP16 is designed for high-power applications, typically supporting currents up to 100A or higher and voltages up to 1000V DC. Please refer to the datasheet for detailed specifications.

Q4: How does the quick-lock mechanism work?
A: The connector uses a push-pull locking system. Users simply push the plug into the socket until an audible click is heard. To disconnect, pull the sleeve back and gently separate the connectors.

Q5: Is custom cable assembly available for the LP16 series?
A: Yes, we offer customized solutions including wire length, gauge, and termination types to meet specific project requirements.

Q6: What materials are used in the LP16 connector?
A: We use high-temperature resistant plastics for the housing and precision copper alloys for the contacts to ensure durability, excellent conductivity, and corrosion resistance.
